SiC MOSFET Modules

All	Datasheet	PART NO.	Picture	Product Status	BVDSS (V)	RDS (on) (mΩ)Typ	RDS (on) (mΩ) Max	ID (A) @25°C	ID (A) @100°C	Configuration	VGS (V)	VGS(th) (V) Typ	Package	CAD模型	電路圖

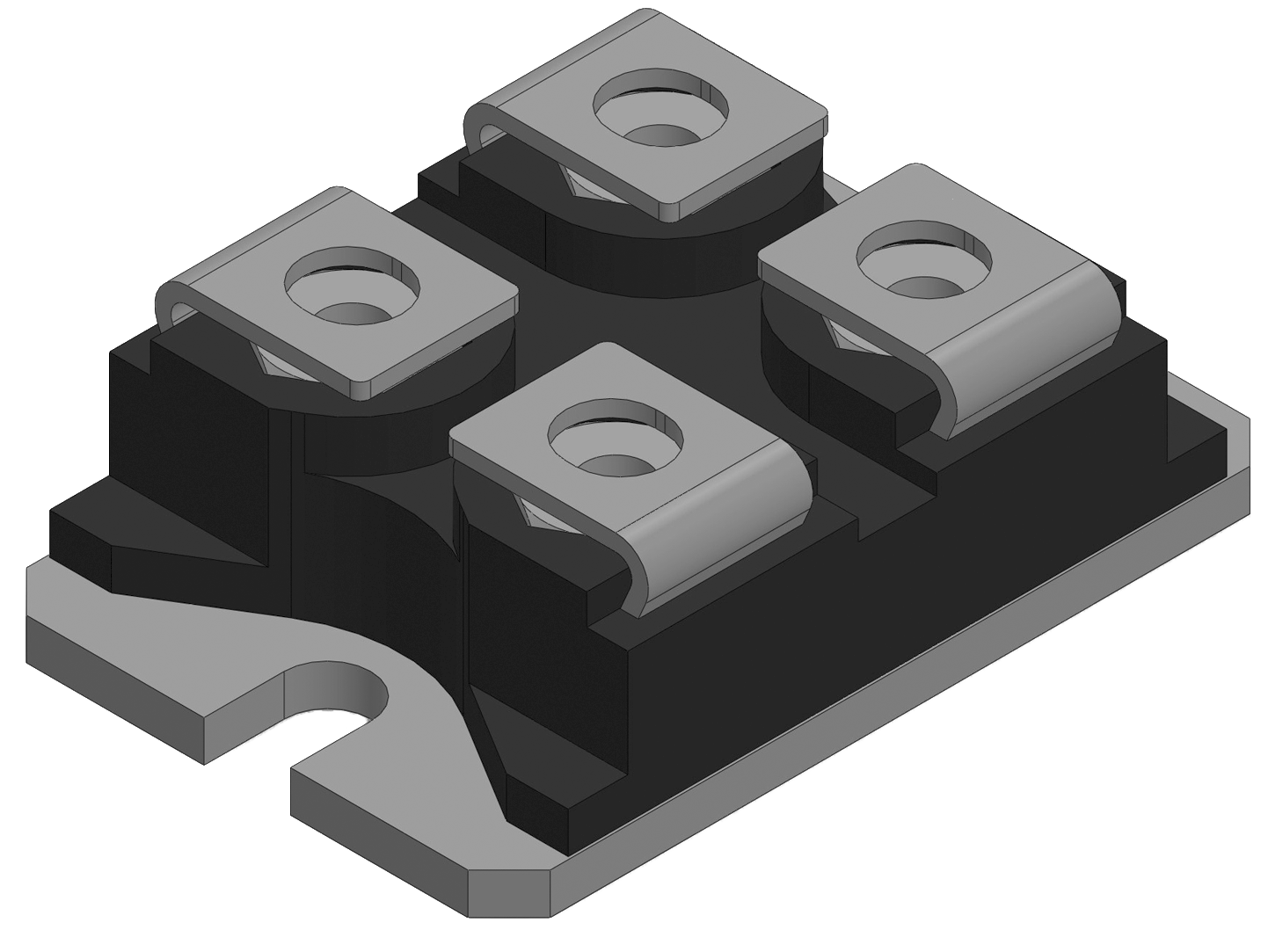

		DACMI100N065BZK2		New	650	10	-	170	100	Single	-4/+18	2.9	SOT-227
		DACMI200N065BZK2		New	650	5	-	340	200	Single	-4/+18	2.9	SOT-227
		DACMI300N065BZK2		New	650	3.5	-	500	300	Single	-4/+18	2.9	SOT-227
		DACMI400N065BZK2		New	650	2.5	-	600	400	Single	-4/+18	2.9	SOT-227
		DACMI050N075BZK3		New	750	26	-	80	50	Single	-4/+15	2.4	SOT-227
		DACMI100N075BZK3		New	750	14	-	160	100	Single	-4/+15	2.4	SOT-227
		DACMI150N075BZK3		New	750	9	-	240	150	Single	-4/+15	2.4	SOT-227
		DACMI200N075BZK3		New	750	6.5	-	320	200	Single	-4/+15	2.4	SOT-227
		DACMI300N120BZK3		New	1200	5	-	450	300	Single	-4/+15	3	SOT-227
		DACMI050N120BZK3		New	1200	37	-	67	50	Single	-4/+15	3	SOT-227
		DACMI090N120BZK3		New	1200	18	-	125	90	Single	-4/+15	3	SOT-227
		DACMI100N120BZK3		New	1200	14.5	-	150	100	Single	-4/+15	3	SOT-227
		DACMI180N120BZK3		New	1200	10	-	250	180	Single	-4/+15	3	SOT-227
		DACMI200N120BZK3		New	1200	7.5	-	300	200	Single	-4/+15	3	SOT-227
		DACMI360N120BZK3		New	1200	4.5	-	500	360	Single	-4/+15	3	SOT-227
		DACMI400N120BZK3		New	1200	3.7	-	600	400	Single	-4/+15	3	SOT-227
		DACMI050N120BZK2		New	1200	35	-	67	50	Single	-4/+18	3	SOT-227
		DACMI090N120BZK2		New	1200	17	-	125	90	Single	-4/+18	3	SOT-227
		DACMI100N120BZK2		New	1200	18	-	135	100	Single	-4/+18	3	SOT-227
		DACMI120N120BZK2		New	1200	12	-	172	120	Single	-4/+18	3.3	SOT-227
		DACMI150N120BZK2		New	1200	12	-	200	150	Single	-4/+18	3	SOT-227
		DACMI200N120BZK2		New	1200	9	-	255	200	Single	-4/+18	3	SOT-227
		DACMI250N120BZK2		New	1200	6	-	370	250	Single	-4/+18	3	SOT-227
		DACMI350N120BZK2		New	1200	5	-	500	350	Single	-4/+18	3	SOT-227
		DACMI360N120BZK2		New	1200	4	-	500	360	Single	-4/+18	3.3	SOT-227
		DACMI480N120BZK2		New	1200	3	-	680	480	Single	-4/+18	3.3	SOT-227
		DACMI060N170BZK2		New	1700	26	-	90	60	Single	-4/+18	3.1	SOT-227
		DACMI120N170BZK2		New	1700	14	-	180	120	Single	-4/+18	3.1	SOT-227
		DACMI180N170BZK2		New	1700	9	-	270	180	Single	-4/+18	3.1	SOT-227
		DACMI240N170BZK2		New	1700	7	-	360	240	Single	-4/+18	3.1	SOT-227
		DACMI060N200BZK2		New	2000	32	-	85	60	Single	-4/+18	3.4	SOT-227
		DACMI063N200BZK2		New	2000	28	-	90	63	Single	-4/+18	3.1	SOT-227
		DACMI120N200BZK2		New	2000	16	-	170	120	Single	-4/+18	3.4	SOT-227
		DACMI125N200BZK2		New	2000	14	-	180	125	Single	-4/+18	3.1	SOT-227
		DACMI180N200BZK2		New	2000	11	-	250	180	Single	-4/+18	3.4	SOT-227
		DACMI190N200BZK2		New	2000	10	-	270	190	Single	-4/+18	3.1	SOT-227
		DACMI240N200BZK2		New	2000	8	-	340	240	Single	-4/+18	3.4	SOT-227
		DACMI250N200BZK2		New	2000	7	-	360	250	Single	-4/+18	3.1	SOT-227
		DACMI060N120BZK		NRND	1200	40	50	60	45	Single	-5/+20	2.7	SOT-227
		DACMI120N120BZK		NRND	1200	20	25	120	90	Single	20	2.5	SOT-227
		DACMI180N120BZK2		NRND	1200	16	18	180	135	Single	18	2.5	SOT-227
		DACMI240N120BZK2		Active	1200	10	11	240	180	Single	18	2.5	SOT-227
		DACMI060N170BZK		Active	1700	45	70	60	40	Single	20	3.4	SOT-227
		DACMI150N120BZK3		New	1200	14	18	150	100	Single	15	2.5	SOT-227
		DACMI250N120BZK3		New	1200	13	14	250	180	Single	15	2.5	SOT-227
		DACMI450N120BZK3		New	1200	5	7	450	330	Single	15	2.5	SOT-227
		DACMH40N1200		Active	1200	60	80	40	25	Half-Bridge	20	2.4	HB-9434
		DACMH80N1200		Active	1200	28	34	80	50	Half-Bridge	20	2.5	HB-9434
		DACMH120N1200		Active	1200	20	25	120	76	Half-Bridge	20	2.5	HB-9434
		DACMH160N1200		Active	1200	16	20	160	110	Half-Bridge	20	2.5	HB-9434
		DACMH200N1200		Active	1200	13	15	200	125	Half-Bridge	20	2.5	HB-9434
		DASMM450N120BH3		New	1200	5.8	-	450	300	Half-Bridge	15	2.1	HBA-15262
