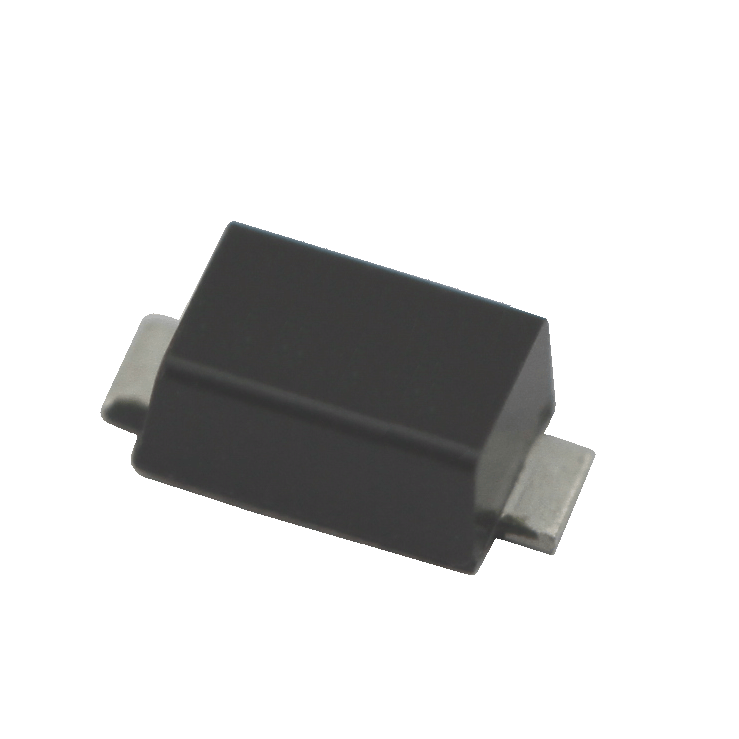

PART NO. | Picture | Product Status | PPPM (W) | VRWM (V) | VBR @IT (V) Min | VBR @IT (V) Max | IT (mA) | IFSM (A) | Vc @IPP (V) Max | IPP (A) | IR @VRWM (µA) Max | TJ (°C) | Package | CAD模型 | 電路圖 |
|
SMA6.8(C)A
|
Active | 400 | 5.8 | 6.46 | 7.14 | 1 | 40 | 10.5 | 38.1 | 500 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA7.5(C)A
|
Active | 400 | 6.4 | 7.13 | 7.88 | 1 | 40 | 11.3 | 35.4 | 500 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA8.2(C)A
|
Active | 400 | 7 | 7.79 | 8.61 | 1 | 40 | 12.1 | 33.06 | 200 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA9.1(C)A
|
Active | 400 | 7.8 | 8.65 | 9.56 | 1 | 40 | 13.4 | 29.85 | 50 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA10(C)A
|
Active | 400 | 8.6 | 9.5 | 10.5 | 1 | 40 | 14.5 | 27.59 | 10 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA11(C)A
|
Active | 400 | 9.4 | 10.45 | 11.55 | 1 | 40 | 15.6 | 25.64 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA12(C)A
|
Active | 400 | 10.2 | 11.4 | 12.6 | 1 | 40 | 16.7 | 23.95 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA13(C)A
|
Active | 400 | 11.1 | 12.35 | 13.65 | 1 | 40 | 18.2 | 21.98 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA15(C)A
|
Active | 400 | 12.8 | 14.25 | 15.75 | 1 | 40 | 21.2 | 18.87 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA16(C)A
|
Active | 400 | 13.6 | 15.2 | 16.8 | 1 | 40 | 22.5 | 17.78 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA18(C)A
|
Active | 400 | 15.3 | 17.1 | 18.9 | 1 | 40 | 25.2 | 15.87 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA20(C)A
|
Active | 400 | 17.1 | 19 | 21 | 1 | 40 | 27.7 | 14.44 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA22(C)A
|
Active | 400 | 18.8 | 20.9 | 23.1 | 1 | 40 | 30.6 | 13.07 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA24(C)A
|
Active | 400 | 20.5 | 22.8 | 25.2 | 1 | 40 | 33.2 | 12.05 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA27(C)A
|
Active | 400 | 23.1 | 25.65 | 28.35 | 1 | 40 | 37.5 | 10.67 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA30(C)A
|
Active | 400 | 25.6 | 28.5 | 31.5 | 1 | 40 | 41.4 | 9.66 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA33(C)A
|
Active | 400 | 28.2 | 31.35 | 34.65 | 1 | 40 | 45.7 | 8.75 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA36(C)A
|
Active | 400 | 30.8 | 34.2 | 37.8 | 1 | 40 | 49.9 | 8.02 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA39(C)A
|
Active | 400 | 33.3 | 37.05 | 40.95 | 1 | 40 | 53.9 | 7.42 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA43(C)A
|
Active | 400 | 36.8 | 40.85 | 45.15 | 1 | 40 | 59.3 | 6.75 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA47(C)A
|
Active | 400 | 40.2 | 44.65 | 49.35 | 1 | 40 | 64.8 | 6.17 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA51(C)A
|
Active | 400 | 43.6 | 48.45 | 53.55 | 1 | 40 | 70.1 | 5.71 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA56(C)A
|
Active | 400 | 47.8 | 53.2 | 58.8 | 1 | 40 | 77 | 5.19 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA62(C)A
|
Active | 400 | 53 | 58.9 | 65.1 | 1 | 40 | 85 | 4.71 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA68(C)A
|
Active | 400 | 58.1 | 64.6 | 71.4 | 1 | 40 | 92 | 4.35 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA75(C)A
|
Active | 400 | 64.1 | 71.25 | 78.75 | 1 | 40 | 103 | 3.88 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA82(C)A
|
Active | 400 | 70.1 | 77.9 | 86.1 | 1 | 40 | 113 | 3.54 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA91(C)A
|
Active | 400 | 77.8 | 86.45 | 95.55 | 1 | 40 | 125 | 3.2 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA100(C)A
|
Active | 400 | 85.5 | 95 | 105 | 1 | 40 | 137 | 2.92 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA110(C)A
|
Active | 400 | 94 | 104.5 | 115.5 | 1 | 40 | 152 | 2.63 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA120(C)A
|
Active | 400 | 102 | 114.5 | 126 | 1 | 40 | 165 | 2.42 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA130(C)A
|
Active | 400 | 111 | 123.5 | 136.5 | 1 | 40 | 179 | 2.23 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA150(C)A
|
Active | 400 | 128 | 142.5 | 157.5 | 1 | 40 | 207 | 1.93 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA160(C)A
|
Active | 400 | 136 | 152 | 168 | 1 | 40 | 219 | 1.83 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA170(C)A
|
Active | 400 | 145 | 161.5 | 178.5 | 1 | 40 | 234 | 1.71 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA180(C)A
|
Active | 400 | 154 | 171 | 189 | 1 | 40 | 246 | 1.63 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA200(C)A
|
Active | 400 | 171 | 190 | 210 | 1 | 40 | 274 | 1.46 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA220(C)A
|
Active | 400 | 185 | 209 | 231 | 1 | 40 | 328 | 1.22 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA250(C)A
|
Active | 400 | 214 | 237.5 | 262.5 | 1 | 40 | 344 | 1.16 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA300(C)A
|
Active | 400 | 256 | 285 | 315 | 1 | 40 | 414 | 0.97 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA350(C)A
|
Active | 400 | 299.3 | 332.5 | 367.5 | 1 | 40 | 482 | 0.83 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA380(C)A
|
Active | 400 | 324.9 | 361 | 399 | 1 | 40 | 524.4 | 0.76 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA400(C)A
|
Active | 400 | 342 | 380 | 420 | 1 | 40 | 552 | 0.72 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA440(C)A
|
Active | 400 | 376.2 | 418 | 462 | 1 | 40 | 607 | 0.66 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA500(C)A
|
Active | 400 | 427.5 | 475 | 525 | 1 | 40 | 690 | 0.58 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA520(C)A
|
Active | 400 | 444.6 | 494 | 546 | 1 | 40 | 717.6 | 0.56 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA550(C)A
|
Active | 400 | 470.3 | 522.5 | 577.5 | 1 | 40 | 759 | 0.53 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA600(C)A
|
Active | 400 | 513 | 570 | 630 | 1 | 40 | 828 | 0.48 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ5.0(C)A
|
Active | 400 | 5 | 6.4 | 7 | 1 | 40 | 9.2 | 43.48 | 500 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ6.0(C)A
|
Active | 400 | 6 | 6.67 | 7.37 | 1 | 40 | 10.3 | 38.48 | 500 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ6.5(C)A
|
Active | 400 | 6.5 | 7.22 | 7.98 | 1 | 40 | 11.2 | 35.71 | 500 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ7.0(C)A
|
Active | 400 | 7 | 7.78 | 8.6 | 1 | 40 | 12 | 33.33 | 200 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ7.5(C)A
|
Active | 400 | 7.5 | 8.33 | 9.21 | 1 | 40 | 12.9 | 31.01 | 100 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ8.0(C)A
|
Active | 400 | 8 | 8.89 | 9.83 | 1 | 40 | 13.6 | 29.41 | 50 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ8.5(C)A
|
Active | 400 | 8.5 | 9.44 | 10.4 | 1 | 40 | 14.4 | 27.78 | 10 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ9.0(C)A
|
Active | 400 | 9 | 10 | 11.1 | 1 | 40 | 15.4 | 25.97 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ10(C)A
|
Active | 400 | 10 | 11.1 | 12.3 | 1 | 40 | 17 | 23.53 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ11(C)A
|
Active | 400 | 11 | 12.2 | 13.5 | 1 | 40 | 18.2 | 21.98 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ12(C)A
|
Active | 400 | 12 | 13.3 | 14.7 | 1 | 40 | 19.9 | 20.1 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ13(C)A
|
Active | 400 | 13 | 14.4 | 15.9 | 1 | 40 | 21.5 | 18.6 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ14(C)A
|
Active | 400 | 14 | 15.6 | 17.2 | 1 | 40 | 23.2 | 17.24 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ15(C)A
|
Active | 400 | 15 | 16.7 | 18.5 | 1 | 40 | 24.4 | 16.39 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ16(C)A
|
Active | 400 | 16 | 17.8 | 19.7 | 1 | 40 | 26 | 15.38 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ17(C)A
|
Active | 400 | 17 | 18.9 | 20.9 | 1 | 40 | 27.6 | 14.49 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ18(C)A
|
Active | 400 | 18 | 20 | 22.1 | 1 | 40 | 29.2 | 13.7 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ19(C)A
|
Active | 400 | 19 | 21.1 | 23.3 | 1 | 40 | 30.8 | 13 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ20(C)A
|
Active | 400 | 20 | 22.2 | 24.5 | 1 | 40 | 32.4 | 12.35 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ22(C)A
|
Active | 400 | 22 | 24.4 | 26.9 | 1 | 40 | 35.5 | 11.27 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ24(C)A
|
Active | 400 | 24 | 26.7 | 29.5 | 1 | 40 | 38.9 | 10.28 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ26(C)A
|
Active | 400 | 26 | 28.9 | 31.9 | 1 | 40 | 42.1 | 9.5 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ28(C)A
|
Active | 400 | 28 | 31.1 | 34.4 | 1 | 40 | 45.4 | 8.81 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ30(C)A
|
Active | 400 | 30 | 33.3 | 36.8 | 1 | 40 | 48.4 | 8.26 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ33(C)A
|
Active | 400 | 33 | 36.7 | 40.6 | 1 | 40 | 53.3 | 7.5 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ36(C)A
|
Active | 400 | 36 | 40 | 44.2 | 1 | 40 | 58.1 | 6.88 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ40(C)A
|
Active | 400 | 40 | 44.4 | 49.1 | 1 | 40 | 64.5 | 6.2 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ43(C)A
|
Active | 400 | 43 | 47.8 | 52.8 | 1 | 40 | 69.4 | 5.76 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ45(C)A
|
Active | 400 | 45 | 50 | 55.3 | 1 | 40 | 72.7 | 5.5 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ48(C)A
|
Active | 400 | 48 | 53.3 | 58.9 | 1 | 40 | 77.4 | 5.17 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ51(C)A
|
Active | 400 | 51 | 56.7 | 62.7 | 1 | 40 | 82.4 | 4.85 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ54(C)A
|
Active | 400 | 54 | 60 | 66.3 | 1 | 40 | 87.1 | 4.59 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ58(C)A
|
Active | 400 | 58 | 64.4 | 71.2 | 1 | 40 | 93.6 | 4.27 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ60(C)A
|
Active | 400 | 60 | 66.7 | 73.7 | 1 | 40 | 96.8 | 4.13 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ64(C)A
|
Active | 400 | 64 | 71.1 | 78.6 | 1 | 40 | 103 | 3.88 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ70(C)A
|
Active | 400 | 70 | 77.8 | 86 | 1 | 40 | 113 | 3.54 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ75(C)A
|
Active | 400 | 75 | 83.3 | 92.1 | 1 | 40 | 121 | 3.31 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ78(C)A
|
Active | 400 | 78 | 86.7 | 95.8 | 1 | 40 | 126 | 3.17 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ80(C)A
|
Active | 400 | 80 | 88.8 | 97.6 | 1 | 40 | 129.6 | 3.09 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ85(C)A
|
Active | 400 | 85 | 94.4 | 104 | 1 | 40 | 137 | 2.92 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ90(C)A
|
Active | 400 | 90 | 100 | 111 | 1 | 40 | 146 | 2.74 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ100(C)A
|
Active | 400 | 100 | 111 | 123 | 1 | 40 | 162 | 2.47 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ110(C)A
|
Active | 400 | 110 | 122 | 135 | 1 | 40 | 177 | 2.26 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ120(C)A
|
Active | 400 | 120 | 133 | 147 | 1 | 40 | 193 | 2.07 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ130(C)A
|
Active | 400 | 130 | 144 | 159 | 1 | 40 | 209 | 1.91 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ140(C)A
|
Active | 400 | 140 | 155 | 171 | 1 | 40 | 226.8 | 1.76 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ150(C)A
|
Active | 400 | 150 | 167 | 185 | 1 | 40 | 243 | 1.65 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ160(C)A
|
Active | 400 | 160 | 178 | 197 | 1 | 40 | 259 | 1.54 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ170(C)A
|
Active | 400 | 170 | 189 | 209 | 1 | 40 | 275 | 1.45 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ180(C)A
|
Active | 400 | 180 | 200 | 220 | 1 | 40 | 291.6 | 1.37 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ190(C)A
|
Active | 400 | 190 | 211 | 232 | 1 | 40 | 307.8 | 1.3 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ200(C)A
|
Active | 400 | 200 | 224 | 247 | 1 | 40 | 324 | 1.23 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ220(C)A
|
Active | 400 | 220 | 246 | 272 | 1 | 40 | 356 | 1.12 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ250(C)A
|
Active | 400 | 250 | 279 | 309 | 1 | 40 | 405 | 0.99 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ300(C)A
|
Active | 400 | 300 | 335 | 371 | 1 | 40 | 486 | 0.82 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ350(C)A
|
Active | 400 | 350 | 391 | 432 | 1 | 40 | 567 | 0.71 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ400(C)A
|
Active | 400 | 400 | 447 | 494 | 1 | 40 | 648 | 0.62 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJ440(C)A
|
Active | 400 | 440 | 492 | 543 | 1 | 40 | 713 | 0.56 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL3.3A
|
Active | 400 | 3.3 | 5.23 | 5.97 | 10 | 40 | 8.5 | 47 | 50 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL5.0A
|
Active | 400 | 5 | 6.43 | 6.97 | 10 | 40 | 9.2 | 43.5 | 20 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL6.0A
|
Active | 400 | 6 | 6.7 | 7.34 | 10 | 40 | 10.3 | 38.8 | 20 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL6.5A
|
Active | 400 | 6.5 | 7.25 | 7.95 | 10 | 40 | 11.2 | 35.7 | 15 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL7.0A
|
Active | 400 | 7 | 7.81 | 8.57 | 10 | 40 | 12 | 33.3 | 15 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL7.5A
|
Active | 400 | 7.5 | 8.36 | 9.18 | 1 | 40 | 12.9 | 31 | 10 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL8.0A
|
Active | 400 | 8 | 8.92 | 9.8 | 1 | 40 | 13.6 | 29.4 | 2 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL8.5A
|
Active | 400 | 8.5 | 9.47 | 10.37 | 1 | 40 | 14.4 | 27.8 | 2 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL9.0A
|
Active | 400 | 9 | 10.03 | 11.07 | 1 | 40 | 15.4 | 26 | 0.2 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL10A
|
Active | 400 | 10 | 11.13 | 12.27 | 1 | 40 | 17 | 23.5 | 0.2 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL11A
|
Active | 400 | 11 | 12.23 | 13.47 | 1 | 40 | 18.2 | 22 | 0.2 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL12A
|
Active | 400 | 12 | 13.33 | 14.67 | 1 | 40 | 21.5 | 18.6 | 0.2 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL13A
|
Active | 400 | 13 | 14.43 | 15.87 | 1 | 40 | 9.2 | 43.5 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL14A
|
Active | 400 | 14 | 15.63 | 17.17 | 1 | 40 | 23.2 | 17.2 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL15A
|
Active | 400 | 15 | 16.73 | 18.29 | 1 | 40 | 24.4 | 13.4 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL16A
|
Active | 400 | 16 | 17.83 | 19.67 | 1 | 40 | 26 | 15.4 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL17A
|
Active | 400 | 17 | 18.93 | 20.87 | 1 | 40 | 27.6 | 14.5 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL18A
|
Active | 400 | 18 | 20.03 | 22.07 | 1 | 40 | 29.2 | 13.7 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL20A
|
Active | 400 | 20 | 22.23 | 24.47 | 1 | 40 | 32.4 | 12.3 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL22A
|
Active | 400 | 22 | 24.43 | 26.87 | 1 | 40 | 35.5 | 11.3 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL24A
|
Active | 400 | 24 | 26.73 | 29.47 | 1 | 40 | 38.9 | 10.3 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL26A
|
Active | 400 | 26 | 28.93 | 31.87 | 1 | 40 | 42.1 | 9.5 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL28A
|
Active | 400 | 28 | 31.13 | 34.37 | 1 | 40 | 45.4 | 8.8 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL30A
|
Active | 400 | 30 | 33.33 | 36.77 | 1 | 40 | 48.4 | 8.3 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL33A
|
Active | 400 | 33 | 36.73 | 40.57 | 1 | 40 | 53.3 | 7.5 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL36A
|
Active | 400 | 36 | 40.03 | 44.17 | 1 | 40 | 58.1 | 6.9 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL40A
|
Active | 400 | 40 | 44.4 | 49.1 | 1 | 40 | 64.5 | 6.2 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL43A
|
Active | 400 | 43 | 47.8 | 52.8 | 1 | 40 | 69.4 | 5.7 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL45A
|
Active | 400 | 45 | 50 | 55.3 | 1 | 40 | 72.7 | 5.5 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL48A
|
Active | 400 | 48 | 53.3 | 58.9 | 1 | 40 | 77.4 | 5.2 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL51A
|
Active | 400 | 51 | 56.7 | 62.7 | 1 | 40 | 82.4 | 4.9 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL54A
|
Active | 400 | 54 | 60 | 66.3 | 1 | 40 | 87.1 | 4.6 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL58A
|
Active | 400 | 58 | 64.4 | 71.2 | 1 | 40 | 93.6 | 4.3 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL60A
|
Active | 400 | 60 | 66.7 | 73.7 | 1 | 40 | 96.8 | 4.1 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMAJL64A
|
Active | 400 | 64 | 71.1 | 78.6 | 1 | 40 | 103 | 3.9 | 0.1 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J5.0(C)A
|
Active | 600 | 5 | 6.4 | 7 | 10 | 100 | 9.2 | 65.2 | 800 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J6.0(C)A
|
Active | 600 | 6 | 6.67 | 7.37 | 10 | 100 | 10.3 | 58.3 | 800 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J6.5(C)A
|
Active | 600 | 6.5 | 7.22 | 7.98 | 10 | 100 | 11.2 | 53.6 | 500 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J7.0(C)A
|
Active | 600 | 7 | 7.78 | 8.6 | 10 | 100 | 12 | 50 | 200 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J7.5(C)A
|
Active | 600 | 7.5 | 8.33 | 9.21 | 1 | 100 | 12.9 | 46.5 | 100 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J8.0(C)A
|
Active | 600 | 8 | 8.89 | 9.83 | 1 | 100 | 13.6 | 44.1 | 50 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J8.5(C)A
|
Active | 600 | 8.5 | 9.44 | 10.4 | 1 | 100 | 14.4 | 41.7 | 20 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J9.0(C)A
|
Active | 600 | 9 | 10 | 11.1 | 1 | 100 | 15.4 | 39 | 10 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J10(C)A
|
Active | 600 | 10 | 11.1 | 12.3 | 1 | 100 | 17 | 35.3 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J11(C)A
|
Active | 600 | 11 | 12.2 | 13.5 | 1 | 100 | 18.2 | 33 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J12(C)A
|
Active | 600 | 12 | 13.3 | 14.7 | 1 | 100 | 19.9 | 30.2 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J13(C)A
|
Active | 600 | 13 | 14.4 | 15.9 | 1 | 100 | 21.5 | 27.9 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J14(C)A
|
Active | 600 | 14 | 15.6 | 17.2 | 1 | 100 | 23.2 | 25.9 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J15(C)A
|
Active | 600 | 15 | 16.7 | 18.5 | 1 | 100 | 24.4 | 24.6 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J16(C)A
|
Active | 600 | 16 | 17.8 | 19.7 | 1 | 100 | 26 | 23.1 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J17(C)A
|
Active | 600 | 17 | 18.9 | 20.9 | 1 | 100 | 27.6 | 21.8 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J18(C)A
|
Active | 600 | 18 | 20 | 22.1 | 1 | 100 | 29.2 | 20.6 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J20(C)A
|
Active | 600 | 20 | 22.2 | 24.5 | 1 | 100 | 32.4 | 18.6 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J22(C)A
|
Active | 600 | 22 | 24.4 | 26.9 | 1 | 100 | 35.5 | 16.9 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J24(C)A
|
Active | 600 | 24 | 26.7 | 29.5 | 1 | 100 | 38.9 | 15.4 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J26(C)A
|
Active | 600 | 26 | 28.9 | 31.9 | 1 | 100 | 42.1 | 14.3 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J28(C)A
|
Active | 600 | 28 | 31.1 | 34.4 | 1 | 100 | 45.4 | 13.2 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J30(C)A
|
Active | 600 | 30 | 33.3 | 36.8 | 1 | 100 | 48.4 | 12.4 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J33(C)A
|
Active | 600 | 33 | 36.7 | 40.6 | 1 | 100 | 53.3 | 11.3 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J36(C)A
|
Active | 600 | 36 | 40 | 44.2 | 1 | 100 | 58.1 | 10.4 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J40(C)A
|
Active | 600 | 40 | 44.4 | 49.1 | 1 | 100 | 64.5 | 9.3 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J43(C)A
|
Active | 600 | 43 | 47.8 | 52.8 | 1 | 100 | 69.4 | 8.7 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J45(C)A
|
Active | 600 | 45 | 50 | 55.3 | 1 | 100 | 72.7 | 8.3 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J48(C)A
|
Active | 600 | 48 | 53.3 | 58.9 | 1 | 100 | 77.4 | 7.8 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J51(C)A
|
Active | 600 | 51 | 56.7 | 62.7 | 1 | 100 | 82.4 | 7.3 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J54(C)A
|
Active | 600 | 54 | 60 | 66.3 | 1 | 100 | 87.1 | 6.9 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J58(C)A
|
Active | 600 | 58 | 64.4 | 71.2 | 1 | 100 | 93.6 | 6.4 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J60(C)A
|
Active | 600 | 60 | 66.7 | 73.7 | 1 | 100 | 96.8 | 6.2 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J64(C)A
|
Active | 600 | 64 | 71.1 | 78.6 | 1 | 100 | 103 | 5.8 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J70(C)A
|
Active | 600 | 70 | 77.8 | 86 | 1 | 100 | 113 | 5.3 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J75(C)A
|
Active | 600 | 75 | 83.3 | 92.1 | 1 | 100 | 121 | 5 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J78(C)A
|
Active | 600 | 78 | 86.7 | 95.8 | 1 | 100 | 126 | 4.8 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J85(C)A
|
Active | 600 | 85 | 94.4 | 104 | 1 | 100 | 137 | 4.4 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J90(C)A
|
Active | 600 | 90 | 100 | 111 | 1 | 100 | 146 | 4.1 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J100(C)A
|
Active | 600 | 100 | 111 | 123 | 1 | 100 | 162 | 3.7 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J110(C)A
|
Active | 600 | 110 | 122 | 135 | 1 | 100 | 177 | 3.4 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J120(C)A
|
Active | 600 | 120 | 133 | 147 | 1 | 100 | 193 | 3.1 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J130(C)A
|
Active | 600 | 130 | 144 | 159 | 1 | 100 | 209 | 2.9 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J150(C)A
|
Active | 600 | 150 | 167 | 185 | 1 | 100 | 243 | 2.5 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J160(C)A
|
Active | 600 | 160 | 178 | 197 | 1 | 100 | 259 | 2.3 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J170(C)A
|
Active | 600 | 170 | 189 | 209 | 1 | 100 | 275 | 2.2 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J180(C)A
|
Active | 600 | 180 | 201 | 222 | 1 | 100 | 292 | 2.1 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J200(C)A
|
Active | 600 | 200 | 224 | 247 | 1 | 100 | 324 | 1.9 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J220(C)A
|
Active | 600 | 220 | 246 | 272 | 1 | 100 | 356 | 1.7 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J250(C)A
|
Active | 600 | 250 | 279 | 309 | 1 | 100 | 405 | 1.5 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J300(C)A
|
Active | 600 | 300 | 335 | 371 | 1 | 100 | 486 | 1.2 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J350(C)A
|
Active | 600 | 350 | 391 | 432 | 1 | 100 | 567 | 1.1 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J400(C)A
|
Active | 600 | 400 | 447 | 494 | 1 | 100 | 648 | 0.9 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMA6J440(C)A
|
Active | 600 | 440 | 492 | 543 | 1 | 100 | 713 | 0.8 | 5 | -55°C to 150°C | SMA (DO-214AC) | |||
|
SMB6.8(C)A
|
Active | 600 | 5.8 | 6.45 | 7.14 | 1 | 100 | 10.5 | 57.14 | 500 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB7.5(C)A
|
Active | 600 | 6.4 | 7.13 | 7.88 | 1 | 100 | 11.3 | 53.1 | 500 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB8.2(C)A
|
Active | 600 | 7 | 7.79 | 8.61 | 1 | 100 | 12.1 | 49.59 | 200 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB9.1(C)A
|
Active | 600 | 7.8 | 8.65 | 9.56 | 1 | 100 | 13.4 | 44.78 | 50 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB10(C)A
|
Active | 600 | 8.6 | 9.5 | 10.5 | 1 | 100 | 14.5 | 41.38 | 10 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB11(C)A
|
Active | 600 | 9.4 | 10.45 | 11.55 | 1 | 100 | 15.6 | 38.46 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB12(C)A
|
Active | 600 | 10.2 | 11.4 | 12.6 | 1 | 100 | 16.7 | 35.93 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB13(C)A
|
Active | 600 | 11.1 | 12.35 | 13.65 | 1 | 100 | 18.2 | 32.97 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB15(C)A
|
Active | 600 | 12.8 | 14.25 | 15.75 | 1 | 100 | 21.2 | 28.3 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB16(C)A
|
Active | 600 | 13.6 | 15.2 | 16.8 | 1 | 100 | 22.5 | 26.67 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB18(C)A
|
Active | 600 | 15.3 | 17.1 | 18.9 | 1 | 100 | 25.5 | 23.81 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB20(C)A
|
Active | 600 | 17.1 | 19 | 21 | 1 | 100 | 27.7 | 21.66 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB22(C)A
|
Active | 600 | 18.8 | 20.9 | 23.1 | 1 | 100 | 30.6 | 19.61 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB24(C)A
|
Active | 600 | 20.5 | 22.8 | 25.2 | 1 | 100 | 33.2 | 18.07 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB27(C)A
|
Active | 600 | 23.1 | 25.65 | 28.35 | 1 | 100 | 37.5 | 16 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB30(C)A
|
Active | 600 | 25.6 | 28.5 | 31.5 | 1 | 100 | 41.4 | 14.49 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB33(C)A
|
Active | 600 | 28.2 | 31.35 | 34.65 | 1 | 100 | 45.7 | 13.13 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB36(C)A
|
Active | 600 | 30.8 | 34.2 | 37.8 | 1 | 100 | 49.9 | 12.02 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB39(C)A
|
Active | 600 | 33.3 | 37.05 | 40.95 | 1 | 100 | 53.9 | 11.13 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB43(C)A
|
Active | 600 | 36.8 | 40.85 | 45.15 | 1 | 100 | 59.3 | 10.12 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB47(C)A
|
Active | 600 | 40.2 | 44.65 | 49.35 | 1 | 100 | 64.8 | 9.26 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB51(C)A
|
Active | 600 | 43.6 | 48.45 | 53.55 | 1 | 100 | 70.1 | 8.56 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB56(C)A
|
Active | 600 | 47.8 | 53.2 | 58.8 | 1 | 100 | 77 | 7.79 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB62(C)A
|
Active | 600 | 53 | 58.9 | 65.1 | 1 | 100 | 85 | 7.06 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB68(C)A
|
Active | 600 | 58.1 | 64.6 | 71.4 | 1 | 100 | 92 | 6.52 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB75(C)A
|
Active | 600 | 64.1 | 71.25 | 78.75 | 1 | 100 | 103 | 5.83 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB82(C)A
|
Active | 600 | 70.1 | 77.9 | 86.1 | 1 | 100 | 113 | 5.31 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB91(C)A
|
Active | 600 | 77.8 | 86.45 | 95.55 | 1 | 100 | 125 | 4.8 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB100(C)A
|
Active | 600 | 85.5 | 95 | 105 | 1 | 100 | 137 | 4.38 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB110(C)A
|
Active | 600 | 94 | 104.5 | 115.5 | 1 | 100 | 152 | 3.95 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB120(C)A
|
Active | 600 | 102 | 114 | 126 | 1 | 100 | 165 | 3.64 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB130(C)A
|
Active | 600 | 111 | 123.5 | 136.5 | 1 | 100 | 179 | 3.35 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB150(C)A
|
Active | 600 | 128 | 142.5 | 157.5 | 1 | 100 | 207 | 2.9 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB160(C)A
|
Active | 600 | 136 | 152 | 168 | 1 | 100 | 219 | 2.74 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB170(C)A
|
Active | 600 | 145 | 161.5 | 178.5 | 1 | 100 | 234 | 2.56 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB180(C)A
|
Active | 600 | 154 | 171 | 189 | 1 | 100 | 246 | 2.44 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB200(C)A
|
Active | 600 | 171 | 190 | 210 | 1 | 100 | 274 | 2.19 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB220(C)A
|
Active | 600 | 185 | 209 | 231 | 1 | 100 | 328 | 1.83 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB250(C)A
|
Active | 600 | 214 | 237.5 | 262.5 | 1 | 100 | 344 | 1.74 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB300(C)A
|
Active | 600 | 256 | 285 | 315 | 1 | 100 | 414 | 1.45 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB350(C)A
|
Active | 600 | 299.3 | 332.5 | 367.5 | 1 | 100 | 482 | 1.24 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB380(C)A
|
Active | 600 | 324.9 | 361 | 399 | 1 | 100 | 524.4 | 1.14 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB400(C)A
|
Active | 600 | 342 | 380 | 420 | 1 | 100 | 548 | 1.09 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB440(C)A
|
Active | 600 | 376.2 | 418 | 462 | 1 | 100 | 607.2 | 0.99 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB500(C)A
|
Active | 600 | 427.5 | 475 | 525 | 1 | 100 | 690 | 0.87 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB510(C)A
|
Active | 600 | 434 | 485 | 535 | 1 | 100 | 698 | 0.86 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB520(C)A
|
Active | 600 | 444.6 | 494 | 546 | 1 | 100 | 717.6 | 0.84 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB550(C)A
|
Active | 600 | 470.3 | 522.5 | 577.5 | 1 | 100 | 759 | 0.79 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMB600(C)A
|
Active | 600 | 513 | 570 | 630 | 1 | 100 | 828 | 0.72 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ5.0(C)A
|
Active | 600 | 5 | 6.4 | 7 | 10 | 100 | 9.2 | 65.22 | 500 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ6.0(C)A
|
Active | 600 | 6 | 6.67 | 7.37 | 10 | 100 | 10.3 | 58.25 | 500 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ6.5(C)A
|
Active | 600 | 6.5 | 7.22 | 7.98 | 10 | 100 | 11.2 | 53.57 | 500 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ7.0(C)A
|
Active | 600 | 7 | 7.78 | 8.6 | 10 | 100 | 12 | 50 | 200 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ7.5(C)A
|
Active | 600 | 7.5 | 8.33 | 9.21 | 1 | 100 | 12.9 | 46.51 | 100 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ8.0(C)A
|
Active | 600 | 8 | 8.89 | 9.83 | 1 | 100 | 13.6 | 44.12 | 50 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ8.5(C)A
|
Active | 600 | 8.5 | 9.44 | 10.4 | 1 | 100 | 14.4 | 41.67 | 10 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ9.0(C)A
|
Active | 600 | 9 | 10 | 11.1 | 1 | 100 | 15.4 | 38.96 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ10(C)A
|
Active | 600 | 10 | 11.1 | 12.3 | 1 | 100 | 17 | 35.29 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ11(C)A
|
Active | 600 | 11 | 12.2 | 13.5 | 1 | 100 | 18.2 | 32.97 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ12(C)A
|
Active | 600 | 12 | 13.3 | 14.7 | 1 | 100 | 19.9 | 30.15 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ13(C)A
|
Active | 600 | 13 | 14.4 | 15.9 | 1 | 100 | 21.5 | 27.91 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ14(C)A
|
Active | 600 | 14 | 15.6 | 17.2 | 1 | 100 | 23.2 | 25.86 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ15(C)A
|
Active | 600 | 15 | 16.7 | 18.5 | 1 | 100 | 24.4 | 24.59 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ16(C)A
|
Active | 600 | 16 | 17.8 | 19.7 | 1 | 100 | 26 | 23.08 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ17(C)A
|
Active | 600 | 17 | 18.9 | 20.9 | 1 | 100 | 27.6 | 21.74 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ18(C)A
|
Active | 600 | 18 | 20 | 22.1 | 1 | 100 | 29.2 | 20.55 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ19(C)A
|
Active | 600 | 19 | 21.1 | 23.3 | 1 | 100 | 30.8 | 19.49 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ20(C)A
|
Active | 600 | 20 | 22.2 | 24.5 | 1 | 100 | 32.4 | 18.52 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ22(C)A
|
Active | 600 | 22 | 24.4 | 26.9 | 1 | 100 | 35.5 | 16.9 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ24(C)A
|
Active | 600 | 24 | 26.7 | 29.5 | 1 | 100 | 38.9 | 15.42 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ26(C)A
|
Active | 600 | 26 | 28.9 | 31.9 | 1 | 100 | 42.1 | 14.25 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ28(C)A
|
Active | 600 | 28 | 31.1 | 34.4 | 1 | 100 | 45.4 | 13.22 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ30(C)A
|
Active | 600 | 30 | 33.3 | 36.8 | 1 | 100 | 48.4 | 12.4 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ33(C)A
|
Active | 600 | 33 | 36.7 | 40.6 | 1 | 100 | 53.3 | 11.26 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ36(C)A
|
Active | 600 | 36 | 40 | 44.2 | 1 | 100 | 58.1 | 10.33 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ40(C)A
|
Active | 600 | 40 | 44.4 | 49.1 | 1 | 100 | 64.5 | 9.3 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ43(C)A
|
Active | 600 | 43 | 47.8 | 52.8 | 1 | 100 | 69.4 | 8.65 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ45(C)A
|
Active | 600 | 45 | 50 | 55.3 | 1 | 100 | 72.7 | 8.25 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ48(C)A
|
Active | 600 | 48 | 53.3 | 58.9 | 1 | 100 | 77.4 | 7.75 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ51(C)A
|
Active | 600 | 51 | 56.7 | 62.7 | 1 | 100 | 82.4 | 7.28 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ54(C)A
|
Active | 600 | 54 | 60 | 66.3 | 1 | 100 | 87.1 | 6.89 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ58(C)A
|
Active | 600 | 58 | 64.4 | 71.2 | 1 | 100 | 93.6 | 6.41 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ60(C)A
|
Active | 600 | 60 | 66.7 | 73.7 | 1 | 100 | 96.8 | 6.2 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ64(C)A
|
Active | 600 | 64 | 71.1 | 78.6 | 1 | 100 | 103 | 5.83 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ70(C)A
|
Active | 600 | 70 | 77.8 | 86 | 1 | 100 | 113 | 5.31 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ75(C)A
|
Active | 600 | 75 | 83.3 | 92.1 | 1 | 100 | 121 | 4.96 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ78(C)A
|
Active | 600 | 78 | 86.7 | 95.8 | 1 | 100 | 126 | 4.76 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ80(C)A
|
Active | 600 | 80 | 88.8 | 97.6 | 1 | 100 | 129.6 | 4.63 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ85(C)A
|
Active | 600 | 85 | 94.4 | 104 | 1 | 100 | 137 | 4.38 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ90(C)A
|
Active | 600 | 90 | 100 | 111 | 1 | 100 | 146 | 4.11 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ100(C)A
|
Active | 600 | 100 | 111 | 123 | 1 | 100 | 162 | 3.7 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ110(C)A
|
Active | 600 | 110 | 122 | 135 | 1 | 100 | 177 | 3.39 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ120(C)A
|
Active | 600 | 120 | 133 | 147 | 1 | 100 | 193 | 3.11 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ130(C)A
|
Active | 600 | 130 | 144 | 159 | 1 | 100 | 209 | 2.87 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ140(C)A
|
Active | 600 | 140 | 155 | 171 | 1 | 100 | 226.8 | 2.65 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ150(C)A
|
Active | 600 | 150 | 167 | 185 | 1 | 100 | 243 | 2.47 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ160(C)A
|
Active | 600 | 160 | 178 | 197 | 1 | 100 | 259 | 2.32 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ170(C)A
|
Active | 600 | 170 | 189 | 209 | 1 | 100 | 275 | 2.18 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ180(C)A
|
Active | 600 | 180 | 200 | 220 | 1 | 100 | 291.6 | 2.06 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ190(C)A
|
Active | 600 | 190 | 211 | 232 | 1 | 100 | 307.8 | 1.95 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ200(C)A
|
Active | 600 | 200 | 224 | 247 | 1 | 100 | 324 | 1.85 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ220(C)A
|
Active | 600 | 220 | 246 | 272 | 1 | 100 | 356 | 1.69 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ250(C)A
|
Active | 600 | 250 | 279 | 309 | 1 | 100 | 405 | 1.48 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ300(C)A
|
Active | 600 | 300 | 335 | 371 | 1 | 100 | 486 | 1.23 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ350(C)A
|
Active | 600 | 350 | 391 | 432 | 1 | 100 | 567 | 1.06 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ400(C)A
|
Active | 600 | 400 | 447 | 494 | 1 | 100 | 648 | 0.93 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMBJ440(C)A
|
Active | 600 | 440 | 492 | 543 | 1 | 100 | 713 | 0.84 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ5.0(C)A
|
Active | 1000 | 5 | 6.4 | 7 | 10 | 100 | 9.2 | 108.7 | 500 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ6.0(C)A
|
Active | 1000 | 6 | 6.67 | 7.37 | 10 | 100 | 10.3 | 97.1 | 500 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ6.5(C)A
|
Active | 1000 | 6.5 | 7.22 | 7.98 | 10 | 100 | 11.2 | 89.3 | 200 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ7.0(C)A
|
Active | 1000 | 7 | 7.78 | 8.6 | 10 | 100 | 12 | 83.4 | 200 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ7.5(C)A
|
Active | 1000 | 7.5 | 8.33 | 9.21 | 1 | 100 | 12.9 | 77.6 | 100 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ8.0(C)A
|
Active | 1000 | 8 | 8.89 | 9.83 | 1 | 100 | 13.6 | 73.6 | 50 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ8.5(C)A
|
Active | 1000 | 8.5 | 9.44 | 10.4 | 1 | 100 | 14.4 | 69.5 | 10 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ9.0(C)A
|
Active | 1000 | 9 | 10 | 11.1 | 1 | 100 | 15.4 | 65 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ10(C)A
|
Active | 1000 | 10 | 11.1 | 12.3 | 1 | 100 | 17 | 58.9 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ11(C)A
|
Active | 1000 | 11 | 12.2 | 13.5 | 1 | 100 | 18.2 | 55 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ12(C)A
|
Active | 1000 | 12 | 13.3 | 14.7 | 1 | 100 | 19.9 | 50.3 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ13(C)A
|
Active | 1000 | 13 | 14.4 | 15.9 | 1 | 100 | 21.5 | 46.6 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ14(C)A
|
Active | 1000 | 14 | 15.6 | 17.2 | 1 | 100 | 23.2 | 43.1 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ15(C)A
|
Active | 1000 | 15 | 16.7 | 18.5 | 1 | 100 | 24.4 | 41 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ16(C)A
|
Active | 1000 | 16 | 17.8 | 19.7 | 1 | 100 | 26 | 38.5 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ17(C)A
|
Active | 1000 | 17 | 18.9 | 20.9 | 1 | 100 | 27.6 | 36.3 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ18(C)A
|
Active | 1000 | 18 | 20 | 22.1 | 1 | 100 | 29.2 | 34.3 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ19(C)A
|
Active | 1000 | 19 | 21.1 | 23.3 | 1 | 100 | 30.8 | 32.5 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ20(C)A
|
Active | 1000 | 20 | 22.2 | 24.5 | 1 | 100 | 32.4 | 30.9 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ22(C)A
|
Active | 1000 | 22 | 24.4 | 26.9 | 1 | 100 | 35.5 | 28.2 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ24(C)A
|
Active | 1000 | 24 | 26.7 | 29.5 | 1 | 100 | 38.9 | 25.7 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ26(C)A
|
Active | 1000 | 26 | 28.9 | 31.9 | 1 | 100 | 42.1 | 23.8 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ28(C)A
|
Active | 1000 | 28 | 31.1 | 34.4 | 1 | 100 | 45.4 | 22.1 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ30(C)A
|
Active | 1000 | 30 | 33.3 | 36.8 | 1 | 100 | 48.4 | 20.7 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ33(C)A
|
Active | 1000 | 33 | 36.7 | 40.6 | 1 | 100 | 53.3 | 18.8 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ36(C)A
|
Active | 1000 | 36 | 40 | 44.2 | 1 | 100 | 58.1 | 17.3 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ40(C)A
|
Active | 1000 | 40 | 44.4 | 49.1 | 1 | 100 | 64.5 | 15.5 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ43(C)A
|
Active | 1000 | 43 | 47.8 | 52.8 | 1 | 100 | 69.4 | 14.4 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ45(C)A
|
Active | 1000 | 45 | 50 | 55.3 | 1 | 100 | 72.7 | 13.8 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ48(C)A
|
Active | 1000 | 48 | 53.3 | 58.9 | 1 | 100 | 77.4 | 13 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ51(C)A
|
Active | 1000 | 51 | 56.7 | 62.7 | 1 | 100 | 82.4 | 12.2 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ54(C)A
|
Active | 1000 | 54 | 60 | 66.3 | 1 | 100 | 87.1 | 11.5 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ58(C)A
|
Active | 1000 | 58 | 64.4 | 71.2 | 1 | 100 | 93.6 | 10.7 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ60(C)A
|
Active | 1000 | 60 | 66.7 | 73.7 | 1 | 100 | 96.8 | 10.4 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ64(C)A
|
Active | 1000 | 64 | 71.1 | 78.6 | 1 | 100 | 103 | 9.7 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ70(C)A
|
Active | 1000 | 70 | 77.8 | 86 | 1 | 100 | 113 | 8.9 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ75(C)A
|
Active | 1000 | 75 | 83.3 | 92.1 | 1 | 100 | 121 | 8.3 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ78(C)A
|
Active | 1000 | 78 | 86.7 | 95.8 | 1 | 100 | 126 | 8 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ80(C)A
|
Active | 1000 | 80 | 88.8 | 97.6 | 1 | 100 | 129.6 | 7.7 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ85(C)A
|
Active | 1000 | 85 | 94.4 | 104 | 1 | 100 | 137 | 7.3 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ90(C)A
|
Active | 1000 | 90 | 100 | 111 | 1 | 100 | 146 | 6.9 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ100(C)A
|
Active | 1000 | 100 | 111 | 123 | 1 | 100 | 162 | 6.2 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ110(C)A
|
Active | 1000 | 110 | 122 | 135 | 1 | 100 | 177 | 5.7 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ120(C)A
|
Active | 1000 | 120 | 133 | 147 | 1 | 100 | 193 | 5.2 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ130(C)A
|
Active | 1000 | 130 | 144 | 159 | 1 | 100 | 209 | 4.8 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ140(C)A
|
Active | 1000 | 140 | 155 | 171 | 1 | 100 | 226.8 | 4.4 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ150(C)A
|
Active | 1000 | 150 | 167 | 185 | 1 | 100 | 243 | 4.2 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ160(C)A
|
Active | 1000 | 160 | 178 | 197 | 1 | 100 | 259 | 3.9 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ170(C)A
|
Active | 1000 | 170 | 189 | 209 | 1 | 100 | 275 | 3.7 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ180(C)A
|
Active | 1000 | 180 | 200 | 220 | 1 | 100 | 291.6 | 3.5 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ190(C)A
|
Active | 1000 | 190 | 211 | 232 | 1 | 100 | 307.8 | 3.3 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
1.0SMBJ200(C)A
|
Active | 1000 | 200 | 224 | 247 | 1 | 100 | 324 | 3.1 | 5 | -55°C to 150°C | SMB (DO-214AA) | |||
|
SMC6.8(C)A
|
Active | 1500 | 5.8 | 6.46 | 7.14 | 1 | 200 | 10.5 | 142.86 | 500 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC7.5(C)A
|
Active | 1500 | 6.4 | 7.13 | 7.88 | 1 | 200 | 11.3 | 132.74 | 500 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC8.2(C)A
|
Active | 1500 | 7 | 7.79 | 8.61 | 1 | 200 | 12.1 | 123.97 | 200 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC9.1(C)A
|
Active | 1500 | 7.8 | 8.65 | 9.56 | 1 | 200 | 13.4 | 111.94 | 50 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC10(C)A
|
Active | 1500 | 8.6 | 9.5 | 10.5 | 1 | 200 | 14.5 | 103.45 | 10 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC11(C)A
|
Active | 1500 | 9.4 | 10.45 | 11.55 | 1 | 200 | 15.6 | 96.15 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC12(C)A
|
Active | 1500 | 10.2 | 11.4 | 12.6 | 1 | 200 | 16.7 | 89.82 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC13(C)A
|
Active | 1500 | 11.1 | 12.35 | 13.65 | 1 | 200 | 18.2 | 82.42 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC15(C)A
|
Active | 1500 | 12.8 | 14.25 | 15.75 | 1 | 200 | 21.2 | 70.75 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC16(C)A
|
Active | 1500 | 13.6 | 15.2 | 16.8 | 1 | 200 | 22.5 | 66.67 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC18(C)A
|
Active | 1500 | 15.3 | 17.1 | 18.9 | 1 | 200 | 25.2 | 59.25 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC20(C)A
|
Active | 1500 | 17.1 | 19 | 21 | 1 | 200 | 27.7 | 54.15 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC22(C)A
|
Active | 1500 | 18.8 | 20.9 | 23.1 | 1 | 200 | 30.6 | 49.02 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC24(C)A
|
Active | 1500 | 20.5 | 22.8 | 25.2 | 1 | 200 | 33.2 | 45.18 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC27(C)A
|
Active | 1500 | 23.1 | 25.65 | 28.35 | 1 | 200 | 37.5 | 40 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC30(C)A
|
Active | 1500 | 25.6 | 28.5 | 31.5 | 1 | 200 | 41.4 | 36.23 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC33(C)A
|
Active | 1500 | 28.2 | 31.35 | 34.65 | 1 | 200 | 45.7 | 32.82 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC36(C)A
|
Active | 1500 | 30.8 | 34.2 | 37.8 | 1 | 200 | 49.9 | 30.06 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC39(C)A
|
Active | 1500 | 33.3 | 37.05 | 40.95 | 1 | 200 | 53.9 | 27.83 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC43(C)A
|
Active | 1500 | 36.8 | 40.85 | 45.15 | 1 | 200 | 59.3 | 25.3 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC47(C)A
|
Active | 1500 | 40.2 | 44.65 | 49.35 | 1 | 200 | 64.8 | 23.15 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC51(C)A
|
Active | 1500 | 43.6 | 48.45 | 53.55 | 1 | 200 | 70.1 | 21.4 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC56(C)A
|
Active | 1500 | 47.8 | 53.2 | 58.8 | 1 | 200 | 77 | 19.48 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC62(C)A
|
Active | 1500 | 53 | 58.9 | 65.1 | 1 | 200 | 85 | 17.65 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC68(C)A
|
Active | 1500 | 58.1 | 64.6 | 71.4 | 1 | 200 | 92 | 16.3 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC75(C)A
|
Active | 1500 | 64.1 | 71.25 | 78.75 | 1 | 200 | 103 | 14.56 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC82(C)A
|
Active | 1500 | 70.1 | 77.9 | 86.1 | 1 | 200 | 113 | 13.27 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC91(C)A
|
Active | 1500 | 77.8 | 86.45 | 95.55 | 1 | 200 | 125 | 12 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC100(C)A
|
Active | 1500 | 85.5 | 95 | 105 | 1 | 200 | 137 | 10.95 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC110(C)A
|
Active | 1500 | 94 | 104.5 | 115.5 | 1 | 200 | 152 | 9.87 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC120(C)A
|
Active | 1500 | 102 | 114 | 126 | 1 | 200 | 165 | 9.09 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC130(C)A
|
Active | 1500 | 111 | 123.5 | 136.5 | 1 | 200 | 179 | 8.38 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC150(C)A
|
Active | 1500 | 128 | 142.5 | 157.5 | 1 | 200 | 207 | 7.25 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC160(C)A
|
Active | 1500 | 136 | 152 | 168 | 1 | 200 | 219 | 6.85 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC170(C)A
|
Active | 1500 | 145 | 161.5 | 178.5 | 1 | 200 | 234 | 6.41 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC180(C)A
|
Active | 1500 | 154 | 171 | 189 | 1 | 200 | 246 | 6.1 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC200(C)A
|
Active | 1500 | 171 | 190 | 210 | 1 | 200 | 274 | 5.47 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC220(C)A
|
Active | 1500 | 185 | 209 | 231 | 1 | 200 | 328 | 4.57 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC250(C)A
|
Active | 1500 | 214 | 237.5 | 262.5 | 1 | 200 | 344 | 4.36 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC300(C)A
|
Active | 1500 | 256 | 285 | 315 | 1 | 200 | 414 | 3.62 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC350(C)A
|
Active | 1500 | 299.3 | 332.5 | 367.5 | 1 | 200 | 482 | 3.11 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC380(C)A
|
Active | 1500 | 324.9 | 361 | 399 | 1 | 200 | 524.4 | 2.86 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC400(C)A
|
Active | 1500 | 342 | 380 | 420 | 1 | 200 | 548 | 2.72 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC440(C)A
|
Active | 1500 | 376.2 | 418 | 462 | 1 | 200 | 602 | 2.47 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC500(C)A
|
Active | 1500 | 427.5 | 475 | 525 | 1 | 200 | 690 | 2.17 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC520(C)A
|
Active | 1500 | 444.6 | 494 | 546 | 1 | 200 | 717.6 | 2.09 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC550(C)A
|
Active | 1500 | 470.3 | 522.5 | 577.5 | 1 | 200 | 759 | 1.98 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMC600(C)A
|
Active | 1500 | 513 | 570 | 630 | 1 | 200 | 828 | 1.81 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ5.0(C)A
|
Active | 1500 | 5 | 6.4 | 7 | 10 | 200 | 9.2 | 163.04 | 500 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ6.0(C)A
|
Active | 1500 | 6 | 6.67 | 7.37 | 10 | 200 | 10.3 | 145.63 | 500 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ6.5(C)A
|
Active | 1500 | 6.5 | 7.22 | 7.98 | 10 | 200 | 11.2 | 133.93 | 500 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ7.0(C)A
|
Active | 1500 | 7 | 7.78 | 8.6 | 10 | 200 | 12 | 125 | 200 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ7.5(C)A
|
Active | 1500 | 7.5 | 8.33 | 9.21 | 1 | 200 | 12.9 | 116.28 | 100 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ8.0(C)A
|
Active | 1500 | 8 | 8.89 | 9.83 | 1 | 200 | 13.6 | 110.29 | 50 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ8.5(C)A
|
Active | 1500 | 8.5 | 9.44 | 10.4 | 1 | 200 | 14.4 | 104.17 | 20 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ9.0(C)A
|
Active | 1500 | 9 | 10 | 11.1 | 1 | 200 | 15.4 | 97.4 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ10(C)A
|
Active | 1500 | 10 | 11.1 | 12.3 | 1 | 200 | 17 | 88.24 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ11(C)A
|
Active | 1500 | 11 | 12.2 | 13.5 | 1 | 200 | 18.2 | 82.42 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ12(C)A
|
Active | 1500 | 12 | 13.3 | 14.7 | 1 | 200 | 19.9 | 75.38 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ13(C)A
|
Active | 1500 | 13 | 14.4 | 15.9 | 1 | 200 | 21.5 | 69.77 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ14(C)A
|
Active | 1500 | 14 | 15.6 | 17.2 | 1 | 200 | 23.2 | 64.66 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ15(C)A
|
Active | 1500 | 15 | 16.7 | 18.5 | 1 | 200 | 24.4 | 61.48 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ16(C)A
|
Active | 1500 | 16 | 17.8 | 19.7 | 1 | 200 | 26 | 57.69 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ17(C)A
|
Active | 1500 | 17 | 18.9 | 20.9 | 1 | 200 | 27.6 | 54.35 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ18(C)A
|
Active | 1500 | 18 | 20 | 22.1 | 1 | 200 | 29.2 | 51.37 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ19(C)A
|
Active | 1500 | 19 | 21.1 | 23.3 | 1 | 200 | 30.8 | 48.73 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ20(C)A
|
Active | 1500 | 20 | 22.2 | 24.5 | 1 | 200 | 32.4 | 46.3 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ22(C)A
|
Active | 1500 | 22 | 24.4 | 26.9 | 1 | 200 | 35.5 | 42.25 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ24(C)A
|
Active | 1500 | 24 | 26.7 | 29.5 | 1 | 200 | 38.9 | 38.56 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ26(C)A
|
Active | 1500 | 26 | 28.9 | 31.9 | 1 | 200 | 42.1 | 35.63 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ28(C)A
|
Active | 1500 | 28 | 31.1 | 34.4 | 1 | 200 | 45.4 | 33.04 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ30(C)A
|
Active | 1500 | 30 | 33.3 | 36.8 | 1 | 200 | 48.4 | 30.99 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ33(C)A
|
Active | 1500 | 33 | 36.7 | 40.6 | 1 | 200 | 53.3 | 28.14 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ36(C)A
|
Active | 1500 | 36 | 40 | 44.2 | 1 | 200 | 58.1 | 25.82 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ40(C)A
|
Active | 1500 | 40 | 44.4 | 49.1 | 1 | 200 | 64.5 | 23.26 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ43(C)A
|
Active | 1500 | 43 | 47.8 | 52.8 | 1 | 200 | 69.4 | 21.61 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ45(C)A
|
Active | 1500 | 45 | 50 | 55.3 | 1 | 200 | 72.7 | 20.63 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ48(C)A
|
Active | 1500 | 48 | 53.3 | 58.9 | 1 | 200 | 77.4 | 19.38 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ51(C)A
|
Active | 1500 | 51 | 56.7 | 62.7 | 1 | 200 | 82.4 | 18.2 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ54(C)A
|
Active | 1500 | 54 | 60 | 66.3 | 1 | 200 | 87.1 | 17.22 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ58(C)A
|
Active | 1500 | 58 | 64.4 | 71.2 | 1 | 200 | 93.6 | 16.03 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ60(C)A
|
Active | 1500 | 60 | 66.7 | 73.7 | 1 | 200 | 96.8 | 15.5 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ64(C)A
|
Active | 1500 | 64 | 71.1 | 78.6 | 1 | 200 | 103 | 14.56 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ70(C)A
|
Active | 1500 | 70 | 77.8 | 86 | 1 | 200 | 113 | 13.27 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ75(C)A
|
Active | 1500 | 75 | 83.3 | 92.1 | 1 | 200 | 121 | 12.4 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ78(C)A
|
Active | 1500 | 78 | 86.7 | 95.8 | 1 | 200 | 126 | 11.9 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ80(C)A
|
Active | 1500 | 80 | 88.8 | 97.6 | 1 | 200 | 129.6 | 11.57 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ85(C)A
|
Active | 1500 | 85 | 94.4 | 104 | 1 | 200 | 137 | 10.95 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ90(C)A
|
Active | 1500 | 90 | 100 | 111 | 1 | 200 | 146 | 10.27 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ100(C)A
|
Active | 1500 | 100 | 111 | 123 | 1 | 200 | 162 | 9.26 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ110(C)A
|
Active | 1500 | 110 | 122 | 135 | 1 | 200 | 177 | 8.47 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ120(C)A
|
Active | 1500 | 120 | 133 | 147 | 1 | 200 | 193 | 7.77 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ130(C)A
|
Active | 1500 | 130 | 144 | 159 | 1 | 200 | 209 | 7.18 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ140(C)A
|
Active | 1500 | 140 | 155 | 171 | 1 | 200 | 226.8 | 6.61 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ150(C)A
|
Active | 1500 | 150 | 167 | 185 | 1 | 200 | 243 | 6.17 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ160(C)A
|
Active | 1500 | 160 | 178 | 197 | 1 | 200 | 259 | 5.79 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ170(C)A
|
Active | 1500 | 170 | 189 | 209 | 1 | 200 | 275 | 5.45 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ180(C)A
|
Active | 1500 | 180 | 200 | 220 | 1 | 200 | 291.6 | 5.14 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ190(C)A
|
Active | 1500 | 190 | 211 | 232 | 1 | 200 | 307.8 | 4.87 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ200(C)A
|
Active | 1500 | 200 | 224 | 247 | 1 | 200 | 324 | 4.6 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ220(C)A
|
Active | 1500 | 220 | 246 | 272 | 1 | 200 | 356 | 4.2 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ250(C)A
|
Active | 1500 | 250 | 279 | 309 | 1 | 200 | 405 | 3.7 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ300(C)A
|
Active | 1500 | 300 | 335 | 371 | 1 | 200 | 486 | 3.1 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ350(C)A
|
Active | 1500 | 350 | 391 | 432 | 1 | 200 | 567 | 2.6 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ400(C)A
|
Active | 1500 | 400 | 447 | 494 | 1 | 200 | 648 | 2.3 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMCJ440(C)A
|
Active | 1500 | 440 | 492 | 543 | 1 | 200 | 713 | 2.1 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ5.0(C)A
|
Active | 3000 | 5 | 6.4 | 7 | 10 | 300 | 9.2 | 326.09 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ6.0(C)A
|
Active | 3000 | 6 | 6.67 | 7.37 | 10 | 300 | 10.3 | 291.26 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ6.5(C)A
|
Active | 3000 | 6.5 | 7.22 | 7.98 | 10 | 300 | 11.2 | 267.86 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ7.0(C)A
|
Active | 3000 | 7 | 7.78 | 8.6 | 10 | 300 | 12 | 250 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ7.5(C)A
|
Active | 3000 | 7.5 | 8.33 | 9.21 | 1 | 300 | 12.9 | 232.56 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ8.0(C)A
|
Active | 3000 | 8 | 8.89 | 9.83 | 1 | 300 | 13.6 | 220.59 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ8.5(C)A
|
Active | 3000 | 8.5 | 9.44 | 10.4 | 1 | 300 | 14.4 | 208.33 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ9.0(C)A
|
Active | 3000 | 9 | 10 | 11.1 | 1 | 300 | 15.4 | 194.81 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ10(C)A
|
Active | 3000 | 10 | 11.1 | 12.3 | 1 | 300 | 17 | 176.47 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ11(C)A
|
Active | 3000 | 11 | 12.2 | 13.5 | 1 | 300 | 18.2 | 164.84 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ12(C)A
|
Active | 3000 | 12 | 13.3 | 14.7 | 1 | 300 | 19.9 | 150.75 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ13(C)A
|
Active | 3000 | 13 | 14.4 | 15.9 | 1 | 300 | 21.5 | 139.53 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ14(C)A
|
Active | 3000 | 14 | 15.6 | 17.2 | 1 | 300 | 23.2 | 129.31 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ15(C)A
|
Active | 3000 | 15 | 16.7 | 18.5 | 1 | 300 | 24.4 | 122.95 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ16(C)A
|
Active | 3000 | 16 | 17.8 | 19.7 | 1 | 300 | 26 | 115.38 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ17(C)A
|
Active | 3000 | 17 | 18.9 | 20.9 | 1 | 300 | 27.6 | 108.7 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ18(C)A
|
Active | 3000 | 18 | 20 | 22.1 | 1 | 300 | 29.2 | 102.74 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ19(C)A
|
Active | 3000 | 19 | 21.1 | 23.3 | 1 | 300 | 30.8 | 97.47 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ20(C)A
|
Active | 3000 | 20 | 22.2 | 24.5 | 1 | 300 | 32.4 | 92.59 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ22(C)A
|
Active | 3000 | 22 | 24.4 | 26.9 | 1 | 300 | 35.5 | 84.51 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ24(C)A
|
Active | 3000 | 24 | 26.7 | 29.5 | 1 | 300 | 38.9 | 77.12 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ26(C)A
|
Active | 3000 | 26 | 28.9 | 31.9 | 1 | 300 | 42.1 | 71.26 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ28(C)A
|
Active | 3000 | 28 | 31.1 | 34.4 | 1 | 300 | 45.4 | 66.08 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ30(C)A
|
Active | 3000 | 30 | 33.3 | 36.8 | 1 | 300 | 48.4 | 61.98 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ33(C)A
|
Active | 3000 | 33 | 36.7 | 40.6 | 1 | 300 | 53.3 | 56.29 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ36(C)A
|
Active | 3000 | 36 | 40 | 44.2 | 1 | 300 | 58.1 | 51.64 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ40(C)A
|
Active | 3000 | 40 | 44.4 | 49.1 | 1 | 300 | 64.5 | 46.51 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ43(C)A
|
Active | 3000 | 43 | 47.8 | 52.8 | 1 | 300 | 69.4 | 43.23 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ45(C)A
|
Active | 3000 | 45 | 50 | 55.3 | 1 | 300 | 72.7 | 41.27 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ48(C)A
|
Active | 3000 | 48 | 53.3 | 58.9 | 1 | 300 | 77.4 | 38.76 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ51(C)A
|
Active | 3000 | 51 | 56.7 | 62.7 | 1 | 300 | 82.4 | 36.41 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ54(C)A
|
Active | 3000 | 54 | 60 | 66.3 | 1 | 300 | 87.1 | 34.44 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ58(C)A
|
Active | 3000 | 58 | 64.4 | 71.2 | 1 | 300 | 93.6 | 32.05 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ60(C)A
|
Active | 3000 | 60 | 66.7 | 73.7 | 1 | 300 | 96.8 | 30.99 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ64(C)A
|
Active | 3000 | 64 | 71.1 | 78.6 | 1 | 300 | 103 | 29.13 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ70(C)A
|
Active | 3000 | 70 | 77.8 | 86 | 1 | 300 | 113 | 26.55 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ75(C)A
|
Active | 3000 | 75 | 83.3 | 92.1 | 1 | 300 | 121 | 24.79 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ78(C)A
|
Active | 3000 | 78 | 86.7 | 95.8 | 1 | 300 | 126 | 23.81 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ80(C)A
|
Active | 3000 | 80 | 88.8 | 97.6 | 1 | 300 | 129.6 | 23.15 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ85(C)A
|
Active | 3000 | 85 | 94.4 | 104 | 1 | 300 | 137 | 21.9 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ90(C)A
|
Active | 3000 | 90 | 100 | 111 | 1 | 300 | 146 | 20.55 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ100(C)A
|
Active | 3000 | 100 | 111 | 123 | 1 | 300 | 162 | 18.52 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ110(C)A
|
Active | 3000 | 110 | 122 | 135 | 1 | 300 | 177 | 16.95 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ120(C)A
|
Active | 3000 | 120 | 133 | 147 | 1 | 300 | 193 | 15.54 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ130(C)A
|
Active | 3000 | 130 | 144 | 159 | 1 | 300 | 209 | 14.35 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ140(C)A
|
Active | 3000 | 140 | 155 | 171 | 1 | 300 | 226.8 | 13.23 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ150(C)A
|
Active | 3000 | 150 | 167 | 185 | 1 | 300 | 243 | 11.58 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ160(C)A
|
Active | 3000 | 160 | 178 | 197 | 1 | 300 | 259 | 11.58 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ170(C)A
|
Active | 3000 | 170 | 189 | 209 | 1 | 300 | 275 | 10.91 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ180(C)A
|
Active | 3000 | 180 | 200 | 220 | 1 | 300 | 291.6 | 10.29 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ190(C)A
|
Active | 3000 | 190 | 211 | 232 | 1 | 300 | 307.8 | 9.75 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ200(C)A
|
Active | 3000 | 200 | 224 | 247 | 1 | 300 | 324 | 9.26 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ220(C)A
|
Active | 3000 | 220 | 246 | 272 | 1 | 300 | 356 | 8.43 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ250(C)A
|
Active | 3000 | 250 | 279 | 309 | 1 | 300 | 405 | 7.41 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ300(C)A
|
Active | 3000 | 300 | 335 | 371 | 1 | 300 | 486 | 6.17 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ350(C)A
|
Active | 3000 | 350 | 391 | 432 | 1 | 300 | 567 | 5.29 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ400(C)A
|
Active | 3000 | 400 | 447 | 494 | 1 | 300 | 648 | 4.63 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
3.0SMCJ440(C)A
|
Active | 3000 | 440 | 492 | 543 | 1 | 300 | 713 | 4.21 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ11(C)A
|
Active | 5000 | 11 | 12.2 | 13.5 | 10 | 300 | 18.2 | 274.7 | 500 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ12(C)A
|
Active | 5000 | 12 | 13.3 | 14.7 | 10 | 300 | 19.9 | 251.3 | 500 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ13(C)A
|
Active | 5000 | 13 | 14.4 | 15.9 | 10 | 300 | 21.5 | 232.6 | 200 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ14(C)A
|
Active | 5000 | 14 | 15.6 | 17.2 | 10 | 300 | 23.2 | 215.5 | 200 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ15(C)A
|
Active | 5000 | 15 | 16.7 | 18.5 | 1 | 300 | 24.4 | 204.9 | 100 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ16(C)A
|
Active | 5000 | 16 | 17.8 | 19.7 | 1 | 300 | 26 | 192.3 | 50 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ17(C)A
|
Active | 5000 | 17 | 18.9 | 20.9 | 1 | 300 | 27.6 | 181.2 | 20 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ18(C)A
|
Active | 5000 | 18 | 20 | 22.1 | 1 | 300 | 29.2 | 171.2 | 10 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ19(C)A
|
Active | 5000 | 19 | 21.1 | 23.3 | 1 | 300 | 30.8 | 162.4 | 10 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ20(C)A
|
Active | 5000 | 20 | 22.2 | 24.5 | 1 | 300 | 32.4 | 154.3 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ22(C)A
|
Active | 5000 | 22 | 24.4 | 26.9 | 1 | 300 | 35.5 | 140.8 | 5 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ24(C)A
|
Active | 5000 | 24 | 26.7 | 29.5 | 1 | 300 | 38.9 | 128.5 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ26(C)A
|
Active | 5000 | 26 | 28.9 | 31.9 | 1 | 300 | 42.1 | 118.8 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ28(C)A
|
Active | 5000 | 28 | 31.1 | 34.4 | 1 | 300 | 45.4 | 110.1 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ30(C)A
|
Active | 5000 | 30 | 33.3 | 36.8 | 1 | 300 | 48.4 | 103.3 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ33(C)A
|
Active | 5000 | 33 | 36.7 | 40.6 | 1 | 300 | 53.3 | 93.8 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ36(C)A
|
Active | 5000 | 36 | 40 | 44.2 | 1 | 300 | 58.1 | 86.1 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ40(C)A
|
Active | 5000 | 40 | 44.4 | 49.1 | 1 | 300 | 64.5 | 77.5 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ43(C)A
|
Active | 5000 | 43 | 47.8 | 52.8 | 1 | 300 | 69.4 | 72 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ45(C)A
|
Active | 5000 | 45 | 50 | 55.3 | 1 | 300 | 72.7 | 68.8 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ48(C)A
|
Active | 5000 | 48 | 53.3 | 58.9 | 1 | 300 | 77.4 | 64.6 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ51(C)A
|
Active | 5000 | 51 | 56.7 | 62.7 | 1 | 300 | 82.4 | 60.7 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ54(C)A
|
Active | 5000 | 54 | 60 | 66.3 | 1 | 300 | 87.1 | 57.4 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ58(C)A
|
Active | 5000 | 58 | 64.4 | 71.2 | 1 | 300 | 93.6 | 53.4 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ60(C)A
|
Active | 5000 | 60 | 66.7 | 73.7 | 1 | 300 | 96.8 | 51.7 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ64(C)A
|
Active | 5000 | 64 | 71.1 | 78.6 | 1 | 300 | 103 | 48.5 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ70(C)A
|
Active | 5000 | 70 | 77.8 | 86 | 1 | 300 | 113 | 44.2 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ75(C)A
|
Active | 5000 | 75 | 83.3 | 92.1 | 1 | 300 | 121 | 41.3 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ78(C)A
|
Active | 5000 | 78 | 86.7 | 95.8 | 1 | 300 | 126 | 39.7 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ80(C)A
|
Active | 5000 | 80 | 88.8 | 97.6 | 1 | 300 | 129.6 | 38.6 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ85(C)A
|
Active | 5000 | 85 | 94.4 | 104 | 1 | 300 | 137 | 36.5 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ90(C)A
|
Active | 5000 | 90 | 100 | 111 | 1 | 300 | 146 | 34.2 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ100(C)A
|
Active | 5000 | 100 | 111 | 123 | 1 | 300 | 162 | 30.9 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ110(C)A
|
Active | 5000 | 110 | 122 | 135 | 1 | 300 | 177 | 28.2 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ120(C)A
|
Active | 5000 | 120 | 133 | 147 | 1 | 300 | 193 | 25.9 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ130(C)A
|
Active | 5000 | 130 | 144 | 159 | 1 | 300 | 209 | 23.9 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ140(C)A
|
Active | 5000 | 140 | 155 | 171 | 1 | 300 | 226.8 | 22 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ150(C)A
|
Active | 5000 | 150 | 167 | 185 | 1 | 300 | 243 | 20.6 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ160(C)A
|
Active | 5000 | 160 | 178 | 197 | 1 | 300 | 259 | 19.3 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ170(C)A
|
Active | 5000 | 170 | 189 | 209 | 1 | 300 | 275 | 18.2 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ180(C)A
|
Active | 5000 | 180 | 200 | 220 | 1 | 300 | 291.6 | 17.1 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ190(C)A
|
Active | 5000 | 190 | 211 | 232 | 1 | 300 | 307.8 | 16.2 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ200(C)A
|
Active | 5000 | 200 | 224 | 247 | 1 | 300 | 324 | 15.4 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ220(C)A
|
Active | 5000 | 220 | 246 | 272 | 1 | 300 | 356 | 14 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ250(C)A
|
Active | 5000 | 250 | 279 | 309 | 1 | 300 | 405 | 12.3 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ300(C)A
|
Active | 5000 | 300 | 335 | 371 | 1 | 300 | 486 | 10.3 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ350(C)A
|
Active | 5000 | 350 | 391 | 432 | 1 | 300 | 567 | 8.8 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ400(C)A
|
Active | 5000 | 400 | 447 | 494 | 1 | 300 | 648 | 7.7 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
5.0SMDJ440(C)A
|
Active | 5000 | 440 | 492 | 543 | 1 | 300 | 713 | 7 | 2 | -55°C to 150°C | SMC (DO-214AB) | |||
|
SMF5.0(C)A
|
Active | 200 | 5 | 6.4 | 7 | 10 | 20 | 9.2 | 21.7 | 400 | -55°C to 150°C | SOD-123FL | |||
|
SMF6.0(C)A
|
Active | 200 | 6 | 6.67 | 7.37 | 10 | 20 | 10.3 | 19.4 | 400 | -55°C to 150°C | SOD-123FL | |||
|
SMF6.5(C)A
|
Active | 200 | 6.5 | 7.22 | 7.98 | 10 | 20 | 11.2 | 17.9 | 250 | -55°C to 150°C | SOD-123FL | |||
|
SMF7.0(C)A
|
Active | 200 | 7 | 7.78 | 8.6 | 10 | 20 | 12 | 16.7 | 100 | -55°C to 150°C | SOD-123FL | |||
|
SMF7.5(C)A
|
Active | 200 | 7.5 | 8.33 | 9.21 | 1 | 20 | 12.9 | 15.5 | 50 | -55°C to 150°C | SOD-123FL | |||
|
SMF8.0(C)A
|
Active | 200 | 8 | 8.89 | 9.83 | 1 | 20 | 13.6 | 14.7 | 25 | -55°C to 150°C | SOD-123FL | |||
|
SMF8.5(C)A
|
Active | 200 | 8.5 | 9.44 | 10.4 | 1 | 20 | 14.4 | 13.9 | 10 | -55°C to 150°C | SOD-123FL | |||
|
SMF9.0(C)A
|
Active | 200 | 9 | 10 | 11.1 | 1 | 20 | 15.4 | 13 | 5 | -55°C to 150°C | SOD-123FL | |||
|
SMF10(C)A
|
Active | 200 | 10 | 11.1 | 12.3 | 1 | 20 | 17 | 11.8 | 2.5 | -55°C to 150°C | SOD-123FL | |||
|
SMF11(C)A
|
Active | 200 | 11 | 12.2 | 13.5 | 1 | 20 | 18.2 | 11 | 2.5 | -55°C to 150°C | SOD-123FL | |||
|
SMF12(C)A
|
Active | 200 | 12 | 13.3 | 14.7 | 1 | 20 | 19.9 | 10.1 | 2.5 | -55°C to 150°C | SOD-123FL | |||
|
SMF13(C)A
|
Active | 200 | 13 | 14.4 | 15.9 | 1 | 20 | 21.5 | 9.3 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF14(C)A
|
Active | 200 | 14 | 15.6 | 17.2 | 1 | 20 | 23.2 | 8.62 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF15(C)A
|
Active | 200 | 15 | 16.7 | 18.5 | 1 | 20 | 24.4 | 8.2 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF16(C)A
|
Active | 200 | 16 | 17.8 | 19.7 | 1 | 20 | 26 | 7.69 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF17(C)A
|
Active | 200 | 17 | 18.9 | 20.9 | 1 | 20 | 27.6 | 7.25 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF18(C)A
|
Active | 200 | 18 | 20 | 22.1 | 1 | 20 | 29.2 | 6.85 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF19(C)A
|
Active | 200 | 19 | 21.1 | 23.3 | 1 | 20 | 30.6 | 6.54 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF20(C)A
|
Active | 200 | 20 | 22.2 | 24.5 | 1 | 20 | 32.4 | 6.17 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF22(C)A
|
Active | 200 | 22 | 24.4 | 26.9 | 1 | 20 | 35.5 | 5.63 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF24(C)A
|
Active | 200 | 24 | 26.7 | 29.5 | 1 | 20 | 38.9 | 5.14 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF26(C)A
|
Active | 200 | 26 | 28.9 | 31.9 | 1 | 20 | 42.1 | 4.75 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF28(C)A
|
Active | 200 | 28 | 31.1 | 34.4 | 1 | 20 | 45.4 | 4.41 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF30(C)A
|
Active | 200 | 30 | 33.3 | 36.8 | 1 | 20 | 48.4 | 4.13 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF33(C)A
|
Active | 200 | 33 | 36.7 | 40.6 | 1 | 20 | 53.3 | 3.75 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF36(C)A
|
Active | 200 | 36 | 40 | 44.2 | 1 | 20 | 58.1 | 3.44 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF40(C)A
|
Active | 200 | 40 | 44.4 | 49.1 | 1 | 20 | 64.5 | 3.1 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF43(C)A
|
Active | 200 | 43 | 47.8 | 52.8 | 1 | 20 | 69.4 | 2.88 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF45(C)A
|
Active | 200 | 45 | 50 | 55.3 | 1 | 20 | 72.7 | 2.75 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF48(C)A
|
Active | 200 | 48 | 53.3 | 58.9 | 1 | 20 | 77.4 | 2.58 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF51(C)A
|
Active | 200 | 51 | 56.7 | 62.7 | 1 | 20 | 82.4 | 2.43 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF54(C)A
|
Active | 200 | 54 | 60 | 66.3 | 1 | 20 | 87.1 | 2.3 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF58(C)A
|
Active | 200 | 58 | 64.4 | 71.2 | 1 | 20 | 93.6 | 2.14 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF60(C)A
|
Active | 200 | 60 | 66.7 | 73.7 | 1 | 20 | 96.8 | 2.07 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF64(C)A
|
Active | 200 | 64 | 71.1 | 78.6 | 1 | 20 | 103 | 1.94 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF70(C)A
|
Active | 200 | 70 | 77.8 | 86 | 1 | 20 | 113 | 1.77 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF75(C)A
|
Active | 200 | 75 | 83.3 | 92.1 | 1 | 20 | 121 | 1.65 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF78(C)A
|
Active | 200 | 78 | 86.7 | 95.8 | 1 | 20 | 126 | 1.59 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF80(C)A
|
Active | 200 | 80 | 88.8 | 97.6 | 1 | 20 | 129 | 1.55 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF85(C)A
|
Active | 200 | 85 | 94.4 | 104 | 1 | 20 | 137 | 1.46 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF90(C)A
|
Active | 200 | 90 | 100 | 111 | 1 | 20 | 146 | 1.37 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF100(C)A
|
Active | 200 | 100 | 111 | 123 | 1 | 20 | 162 | 1.23 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF110(C)A
|
Active | 200 | 110 | 122 | 135 | 1 | 20 | 177 | 1.13 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF120(C)A
|
Active | 200 | 120 | 133 | 147 | 1 | 20 | 193 | 1.04 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF130(C)A
|
Active | 200 | 130 | 144 | 159 | 1 | 20 | 209 | 0.96 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF140(C)A
|
Active | 200 | 140 | 155 | 171 | 1 | 20 | 224 | 0.89 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF150(C)A
|
Active | 200 | 150 | 167 | 185 | 1 | 20 | 243 | 0.82 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF160(C)A
|
Active | 200 | 160 | 178 | 197 | 1 | 20 | 259 | 0.77 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF170(C)A
|
Active | 200 | 170 | 189 | 209 | 1 | 20 | 275 | 0.73 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF180(C)A
|
Active | 200 | 180 | 200 | 220 | 1 | 20 | 292 | 0.69 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF190(C)A
|
Active | 200 | 190 | 211 | 232 | 1 | 20 | 308 | 0.69 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMF200(C)A
|
Active | 200 | 200 | 224 | 247 | 1 | 20 | 324 | 0.62 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL3.3A
|
Active | 200 | 3.3 | 5.23 | 5.97 | 10 | 20 | 8.5 | 23.5 | 30 | -55°C to 150°C | SOD-123FL | |||
|
SMFL5.0A
|
Active | 200 | 5 | 6.4 | 7 | 10 | 20 | 9.2 | 21.7 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL6.0A
|
Active | 200 | 6 | 6.67 | 7.37 | 10 | 20 | 10.3 | 19.4 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL6.5A
|
Active | 200 | 6.5 | 7.22 | 7.98 | 10 | 20 | 11.2 | 17.9 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL7.0A
|
Active | 200 | 7 | 7.78 | 8.6 | 10 | 20 | 12 | 16.7 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL7.5A
|
Active | 200 | 7.5 | 8.33 | 9.21 | 1 | 20 | 12.9 | 15.5 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL8.0A
|
Active | 200 | 8 | 8.89 | 9.83 | 1 | 20 | 13.6 | 14.7 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL8.5A
|
Active | 200 | 8.5 | 9.44 | 10.4 | 1 | 20 | 14.4 | 13.9 | 1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL9.0A
|
Active | 200 | 9 | 10 | 11.1 | 1 | 20 | 15.4 | 13 | 0.5 | -55°C to 150°C | SOD-123FL | |||
|
SMFL10A
|
Active | 200 | 10 | 11.1 | 12.3 | 1 | 20 | 17 | 11.8 | 0.5 | -55°C to 150°C | SOD-123FL | |||
|
SMFL11A
|
Active | 200 | 11 | 12.2 | 13.5 | 1 | 20 | 18.2 | 11 | 0.5 | -55°C to 150°C | SOD-123FL | |||
|
SMFL12A
|
Active | 200 | 12 | 13.3 | 14.7 | 1 | 20 | 19.9 | 10.1 | 0.5 | -55°C to 150°C | SOD-123FL | |||
|
SMFL13A
|
Active | 200 | 13 | 14.4 | 15.9 | 1 | 20 | 21.5 | 9.3 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL14A
|
Active | 200 | 14 | 15.6 | 17.2 | 1 | 20 | 23.2 | 8.62 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL15A
|
Active | 200 | 15 | 16.7 | 18.5 | 1 | 20 | 24.4 | 8.2 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL16A
|
Active | 200 | 16 | 17.8 | 19.7 | 1 | 20 | 26 | 7.69 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL17A
|
Active | 200 | 17 | 18.9 | 20.9 | 1 | 20 | 27.6 | 7.25 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL18A
|
Active | 200 | 18 | 20 | 22.1 | 1 | 20 | 29.2 | 6.85 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL19A
|
Active | 200 | 19 | 21.1 | 23.3 | 1 | 20 | 30.6 | 6.54 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL20A
|
Active | 200 | 20 | 22.2 | 24.5 | 1 | 20 | 32.4 | 6.17 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL22A
|
Active | 200 | 22 | 24.4 | 26.9 | 1 | 20 | 35.5 | 5.63 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL24A
|
Active | 200 | 24 | 26.7 | 29.5 | 1 | 20 | 38.9 | 5.14 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL26A
|
Active | 200 | 26 | 28.9 | 31.9 | 1 | 20 | 42.1 | 4.75 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL28A
|
Active | 200 | 28 | 31.1 | 34.4 | 1 | 20 | 45.4 | 4.41 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL30A
|
Active | 200 | 30 | 33.3 | 36.8 | 1 | 20 | 48.4 | 4.13 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL33A
|
Active | 200 | 33 | 36.7 | 40.6 | 1 | 20 | 53.3 | 3.75 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL36A
|
Active | 200 | 36 | 40 | 44.2 | 1 | 20 | 58.1 | 3.44 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
SMFL40A
|
Active | 200 | 40 | 44.4 | 49.1 | 1 | 20 | 64.5 | 3.1 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF5.0A
|
Active | 400 | 5 | 6.4 | 7.07 | 10 | 30 | 9.2 | 43.5 | 500 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF6.0A
|
Active | 400 | 6 | 6.67 | 7.37 | 10 | 30 | 10.3 | 38.8 | 500 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF6.5A
|
Active | 400 | 6.5 | 7.22 | 7.98 | 10 | 30 | 11.2 | 35.7 | 100 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF7.0A
|
Active | 400 | 7 | 7.78 | 8.6 | 10 | 30 | 12 | 33.3 | 50 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF7.5A
|
Active | 400 | 7.5 | 8.33 | 9.21 | 1 | 30 | 12.9 | 31 | 50 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF8.0A
|
Active | 400 | 8 | 8.89 | 9.83 | 1 | 30 | 13.6 | 29.4 | 20 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF11A
|
Active | 400 | 11 | 12.2 | 13.5 | 1 | 30 | 18.2 | 22 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF12A
|
Active | 400 | 12 | 13.3 | 14.7 | 1 | 30 | 19.9 | 20.1 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF13A
|
Active | 400 | 13 | 14.4 | 15.9 | 1 | 30 | 21.5 | 18.6 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF14A
|
Active | 400 | 14 | 15.6 | 17.2 | 1 | 30 | 23.2 | 17.2 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF15A
|
Active | 400 | 15 | 16.7 | 18.5 | 1 | 30 | 24.4 | 16.4 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF16A
|
Active | 400 | 16 | 17.8 | 19.7 | 1 | 30 | 26 | 15.4 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF17A
|
Active | 400 | 17 | 18.9 | 20.9 | 1 | 30 | 27.6 | 14.5 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF18A
|
Active | 400 | 18 | 20 | 23.3 | 1 | 30 | 29.2 | 13.7 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF20A
|
Active | 400 | 20 | 22.2 | 24.5 | 1 | 30 | 32.4 | 12.3 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF22A
|
Active | 400 | 22 | 24.4 | 26.9 | 1 | 30 | 35.5 | 11.3 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF24A
|
Active | 400 | 24 | 26.7 | 29.5 | 1 | 30 | 38.9 | 10.3 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF26A
|
Active | 400 | 26 | 28.9 | 31.9 | 1 | 30 | 42.1 | 9.5 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF28A
|
Active | 400 | 28 | 31.1 | 34.4 | 1 | 30 | 45.4 | 8.8 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF30A
|
Active | 400 | 30 | 33.3 | 36.8 | 1 | 30 | 48.4 | 8.3 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF33A
|
Active | 400 | 33 | 36.7 | 40.6 | 1 | 30 | 53.3 | 7.5 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF36A
|
Active | 400 | 36 | 40 | 44.2 | 1 | 30 | 58.1 | 6.9 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF40A
|
Active | 400 | 40 | 44.4 | 49.1 | 1 | 30 | 64.5 | 6.2 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF43A
|
Active | 400 | 43 | 47.8 | 52.8 | 1 | 30 | 69.4 | 5.8 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF45A
|
Active | 400 | 45 | 50 | 55.3 | 1 | 30 | 72.7 | 5.5 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF48A
|
Active | 400 | 48 | 53.3 | 58.9 | 1 | 30 | 77.4 | 5.2 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF51A
|
Active | 400 | 51 | 56.7 | 62.7 | 1 | 30 | 82.4 | 4.9 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF54A
|
Active | 400 | 54 | 60 | 66.3 | 1 | 30 | 87.1 | 4.6 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF58A
|
Active | 400 | 58 | 64.4 | 71.2 | 1 | 30 | 93.6 | 4.3 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF60A
|
Active | 400 | 60 | 66.7 | 73.7 | 1 | 30 | 96.8 | 4.1 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF64A
|
Active | 400 | 64 | 71.1 | 78.6 | 1 | 30 | 103 | 3.9 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF70A
|
Active | 400 | 70 | 77.8 | 86 | 1 | 30 | 113 | 3.5 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF75A
|
Active | 400 | 75 | 83.3 | 92.1 | 1 | 30 | 121 | 3.3 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF78A
|
Active | 400 | 78 | 86.7 | 95.8 | 1 | 30 | 126 | 3.2 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF80A
|
Active | 400 | 80 | 88.8 | 97.6 | 1 | 30 | 129.6 | 3.1 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF85A
|
Active | 400 | 85 | 94.4 | 104 | 1 | 30 | 137 | 2.9 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF90A
|
Active | 400 | 90 | 100 | 111 | 1 | 30 | 146 | 2.7 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMF100A
|
Active | 400 | 100 | 111 | 123 | 1 | 30 | 162 | 2.5 | 1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL3.3A
|
Active | 400 | 3.3 | 5.23 | 5.97 | 10 | 30 | 8.5 | 47 | 50 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL5.0A
|
Active | 400 | 5 | 6.43 | 6.97 | 10 | 30 | 9.2 | 43.5 | 20 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL6.0A
|
Active | 400 | 6 | 6.7 | 7.34 | 10 | 30 | 10.3 | 38.8 | 20 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL6.5A
|
Active | 400 | 6.5 | 7.25 | 7.95 | 10 | 30 | 11.2 | 35.7 | 15 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL7.0A
|
Active | 400 | 7 | 7.81 | 8.57 | 10 | 30 | 12 | 33.3 | 15 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL7.5A
|
Active | 400 | 7.5 | 8.36 | 9.18 | 1 | 30 | 12.9 | 31 | 10 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL8.0A
|
Active | 400 | 8 | 8.92 | 9.8 | 1 | 30 | 13.6 | 29.4 | 2 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL8.5A
|
Active | 400 | 8.5 | 9.47 | 10.37 | 1 | 30 | 14.4 | 27.8 | 2 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL9.0A
|
Active | 400 | 9 | 10.03 | 11.07 | 1 | 30 | 15.4 | 26 | 0.2 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL10A
|
Active | 400 | 10 | 11.13 | 12.27 | 1 | 30 | 17 | 23.5 | 0.2 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL11A
|
Active | 400 | 11 | 12.23 | 13.47 | 1 | 30 | 18.2 | 22 | 0.2 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL12A
|
Active | 400 | 12 | 13.33 | 14.67 | 1 | 30 | 21.5 | 18.6 | 0.2 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL13A
|
Active | 400 | 13 | 14.43 | 15.87 | 1 | 30 | 9.2 | 43.5 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL14A
|
Active | 400 | 14 | 15.63 | 17.17 | 1 | 30 | 23.2 | 17.2 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL15A
|
Active | 400 | 15 | 16.73 | 18.29 | 1 | 30 | 24.4 | 13.4 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL16A
|
Active | 400 | 16 | 17.83 | 19.67 | 1 | 30 | 26 | 15.4 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL17A
|
Active | 400 | 17 | 18.93 | 20.87 | 1 | 30 | 27.6 | 14.5 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL18A
|
Active | 400 | 18 | 20.03 | 22.07 | 1 | 30 | 29.2 | 13.7 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL20A
|
Active | 400 | 20 | 22.23 | 24.47 | 1 | 30 | 32.4 | 12.3 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL22A
|
Active | 400 | 22 | 24.43 | 26.87 | 1 | 30 | 35.5 | 11.3 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL24A
|
Active | 400 | 24 | 26.73 | 29.47 | 1 | 30 | 38.9 | 10.3 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL26A
|
Active | 400 | 26 | 28.93 | 31.87 | 1 | 30 | 42.1 | 9.5 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL28A
|
Active | 400 | 28 | 31.13 | 34.37 | 1 | 30 | 45.4 | 8.8 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL30A
|
Active | 400 | 30 | 33.33 | 36.77 | 1 | 30 | 48.4 | 8.3 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL33A
|
Active | 400 | 33 | 36.73 | 40.57 | 1 | 30 | 53.3 | 7.5 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL36A
|
Active | 400 | 36 | 40.03 | 44.17 | 1 | 30 | 58.1 | 6.9 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL40A
|
Active | 400 | 40 | 44.4 | 49.1 | 1 | 30 | 64.5 | 6.2 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL43A
|
Active | 400 | 43 | 47.8 | 52.8 | 1 | 30 | 69.4 | 5.7 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL45A
|
Active | 400 | 45 | 50 | 55.3 | 1 | 30 | 72.7 | 5.5 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL48A
|
Active | 400 | 48 | 53.3 | 58.9 | 1 | 30 | 77.4 | 5.2 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL51A
|
Active | 400 | 51 | 56.7 | 62.7 | 1 | 30 | 82.4 | 4.9 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL54A
|
Active | 400 | 54 | 60 | 66.3 | 1 | 30 | 87.1 | 4.6 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL58A
|
Active | 400 | 58 | 64.4 | 71.2 | 1 | 30 | 93.6 | 4.3 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL60A
|
Active | 400 | 60 | 66.7 | 73.7 | 1 | 30 | 96.8 | 4.1 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
P4SMFL64A
|
Active | 400 | 64 | 71.1 | 78.6 | 1 | 30 | 103 | 3.9 | 0.1 | -55°C to 150°C | SOD-123FL | |||
|
1.5SMP5.0A
|
Active | 1500 | 5 | 6.4 | 7 | 10 | 200 | 9.2 | 163.04 | 500 | -55°C to 150°C | TO-277 | |||
|
1.5SMP6.0A
|
Active | 1500 | 6 | 6.67 | 7.37 | 10 | 200 | 10.3 | 145.63 | 500 | -55°C to 150°C | TO-277 | |||
|
1.5SMP6.5A
|
Active | 1500 | 6.5 | 7.22 | 7.98 | 10 | 200 | 11.2 | 133.93 | 500 | -55°C to 150°C | TO-277 | |||
|
1.5SMP7.0A
|
Active | 1500 | 7 | 7.78 | 8.6 | 10 | 200 | 12 | 125 | 200 | -55°C to 150°C | TO-277 | |||
|
1.5SMP7.5A
|
Active | 1500 | 7.5 | 8.33 | 9.21 | 1 | 200 | 12.9 | 116.28 | 100 | -55°C to 150°C | TO-277 | |||
|
1.5SMP8.0A
|
Active | 1500 | 8 | 8.89 | 9.83 | 1 | 200 | 13.6 | 110.29 | 50 | -55°C to 150°C | TO-277 | |||
|
1.5SMP8.5A
|
Active | 1500 | 8.5 | 9.44 | 10.4 | 1 | 200 | 14.4 | 104.17 | 20 | -55°C to 150°C | TO-277 | |||
|
1.5SMP9.0A
|
Active | 1500 | 9 | 10 | 11.1 | 1 | 200 | 15.4 | 97.4 | 10 | -55°C to 150°C | TO-277 | |||
|
1.5SMP10A
|
Active | 1500 | 10 | 11.1 | 12.3 | 1 | 200 | 17 | 88.24 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP11A
|
Active | 1500 | 11 | 12.2 | 13.5 | 1 | 200 | 18.2 | 82.42 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP12A
|
Active | 1500 | 12 | 13.3 | 14.7 | 1 | 200 | 19.9 | 75.38 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP13A
|
Active | 1500 | 13 | 14.4 | 15.9 | 1 | 200 | 21.5 | 69.77 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP14A
|
Active | 1500 | 14 | 15.6 | 17.2 | 1 | 200 | 23.2 | 64.66 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP15A
|
Active | 1500 | 15 | 16.7 | 18.5 | 1 | 200 | 24.4 | 61.48 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP16A
|
Active | 1500 | 16 | 17.8 | 19.7 | 1 | 200 | 26 | 57.69 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP17A
|
Active | 1500 | 17 | 18.9 | 20.9 | 1 | 200 | 27.6 | 54.35 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP18A
|
Active | 1500 | 18 | 20 | 22.1 | 1 | 200 | 29.2 | 51.37 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP19A
|
Active | 1500 | 19 | 21.1 | 23.3 | 1 | 200 | 30.8 | 48.73 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP20A
|
Active | 1500 | 20 | 22.2 | 24.5 | 1 | 200 | 32.4 | 46.3 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP22A
|
Active | 1500 | 22 | 24.4 | 26.9 | 1 | 200 | 35.5 | 42.25 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP24A
|
Active | 1500 | 24 | 26.7 | 29.5 | 1 | 200 | 38.9 | 38.56 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP26A
|
Active | 1500 | 26 | 28.9 | 31.9 | 1 | 200 | 42.1 | 35.63 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP28A
|
Active | 1500 | 28 | 31.1 | 34.4 | 1 | 200 | 45.4 | 33.04 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP30A
|
Active | 1500 | 30 | 33.3 | 36.8 | 1 | 200 | 48.4 | 30.99 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP33A
|
Active | 1500 | 33 | 36.7 | 40.6 | 1 | 200 | 53.3 | 28.14 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP36A
|
Active | 1500 | 36 | 40 | 44.2 | 1 | 200 | 58.1 | 25.82 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP40A
|
Active | 1500 | 40 | 44.4 | 49.1 | 1 | 200 | 64.5 | 23.26 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP43A
|
Active | 1500 | 43 | 47.8 | 52.8 | 1 | 200 | 69.4 | 21.61 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP45A
|
Active | 1500 | 45 | 50 | 55.3 | 1 | 200 | 72.7 | 20.63 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP48A
|
Active | 1500 | 48 | 53.3 | 58.9 | 1 | 200 | 77.4 | 19.38 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP51A
|
Active | 1500 | 51 | 56.7 | 62.7 | 1 | 200 | 82.4 | 18.2 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP54A
|
Active | 1500 | 54 | 60 | 66.3 | 1 | 200 | 87.1 | 17.22 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP58A
|
Active | 1500 | 58 | 64.4 | 71.2 | 1 | 200 | 93.6 | 16.03 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP60A
|
Active | 1500 | 60 | 66.7 | 73.7 | 1 | 200 | 96.8 | 15.5 | 5 | -55°C to 150°C | TO-277 | |||
|
1.5SMP64A
|
Active | 1500 | 64 | 71.1 | 78.6 | 1 | 200 | 103 | 14.56 | 5 | -55°C to 150°C | TO-277 | |||
|
P4KE6.8(C)
|
Active | 400 | 5.5 | 6.46 | 7.48 | 10 | 40 | 10.8 | 37.4 | 1000 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
P4KE6.8(C)A
|
Active | 400 | 5.8 | 6.45 | 7.14 | 10 | 40 | 10.5 | 38.1 | 1000 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
P4KE7.5(C)
|
Active | 400 | 6.1 | 6.75 | 8.25 | 10 | 40 | 11.7 | 34.19 | 500 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
P4KE7.5(C)A
|
Active | 400 | 6.4 | 7.13 | 7.88 | 10 | 40 | 11.3 | 35.4 | 500 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
P4KE8.2(C)
|
Active | 400 | 6.6 | 7.38 | 9.02 | 10 | 40 | 12.5 | 32 | 200 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
P4KE8.2(C)A
|
Active | 400 | 7 | 7.79 | 8.61 | 10 | 40 | 12.1 | 33.06 | 200 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
P4KE9.1(C)
|
Active | 400 | 7.4 | 8.19 | 10.01 | 1 | 40 | 13.8 | 28.99 | 50 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
P4KE9.1(C)A
|
Active | 400 | 7.8 | 8.65 | 9.56 | 1 | 40 | 13.4 | 29.85 | 50 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
P4KE10(C)
|
Active | 400 | 8.1 | 9 | 11 | 1 | 40 | 15 | 26.67 | 10 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
P4KE10(C)A
|
Active | 400 | 8.6 | 9.5 | 10.5 | 1 | 40 | 14.5 | 27.59 | 10 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
P4KE11(C)
|
Active | 400 | 8.9 | 9.9 | 12.1 | 1 | 40 | 16.2 | 24.69 | 5 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
P4KE11(C)A
|
Active | 400 | 9.4 | 10.45 | 11.55 | 1 | 40 | 15.6 | 25.64 | 5 | -55°C to 150°C | DO-41 (DO-204AL) | |||
|
