Datasheet | PART NO. | Picture | Product Status | VDC(V) | IF(A) | VF@Tj-25 C(V) | VF@Tj-175 C(V) | Package | Configuration | CAD模型 | 電路圖 |
|
|
 |
CSR006-065D3
|
 |
Active | 650V | 6 | 1.3 | 1.6 | TO-252AA (DPAK) | Single | ||
|
|
|

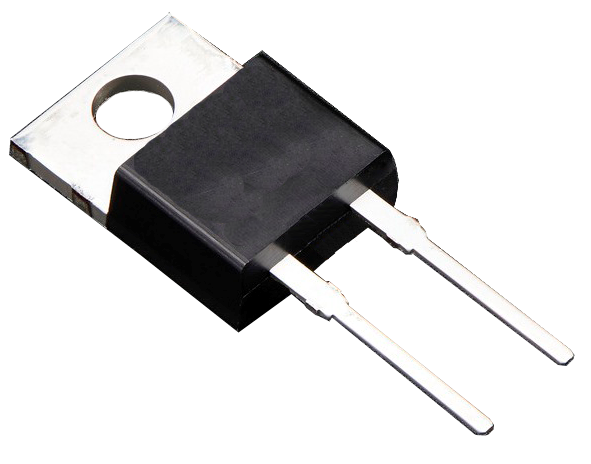

CSR008-065C3
|
 |
Active | 650V | 8 | 1.3 | 1.5 | TO-220-2 | Single | ||
|
|
|
CSR015-065C3
|
 |
Active | 650V | 15 | 1.3 | 1.5 | TO-220-2 | Single | ||
|
|
|
CSR020-065C3
|
 |
Active | 650V | 20 | 1.3 | 1.5 | TO-220-2 | Single | ||
|
|
|
CSR006-065T2
|
 |
Active | 650V | 6 | 1.3 | 1.38 | TO-263-2 (D²PAK) | Single | ||
|
|
|
CSR008-065T2
|
 |
Active | 650V | 8 | 1.27 | 1.38 | TO-263-2 (D²PAK) | Single | ||
|
|
|
CSR010-065T2
|
 |
Active | 650V | 10 | 1.27 | 1.38 | TO-263-2 (D²PAK) | Single | ||
|
|
|
CSR020-065X3
|
 |
Active | 650V | 20 | 1.3 | 1.45 | TO-263-2 (D²PAK) | Single | ||
|
|
|

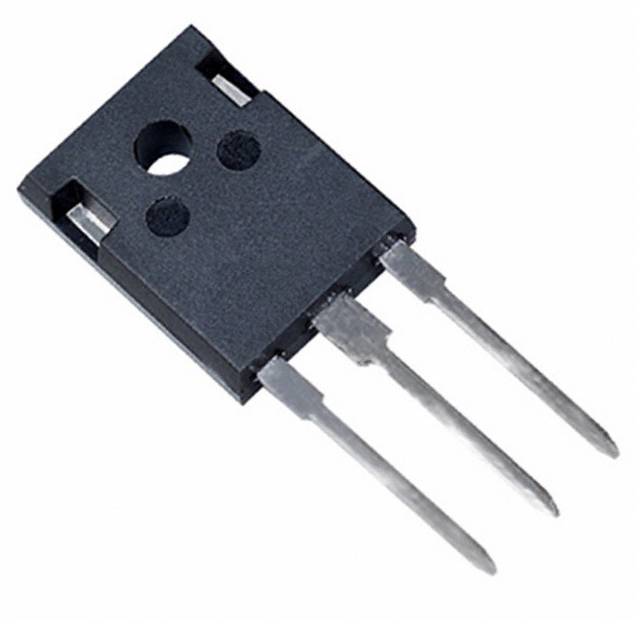

CSR040-120P2
|
 |
Active | 1200V | 40 | 1.4 | 2.0 | TO-247-3 | Dual Anode Common Cathode |
